Paramètres

• Model Name

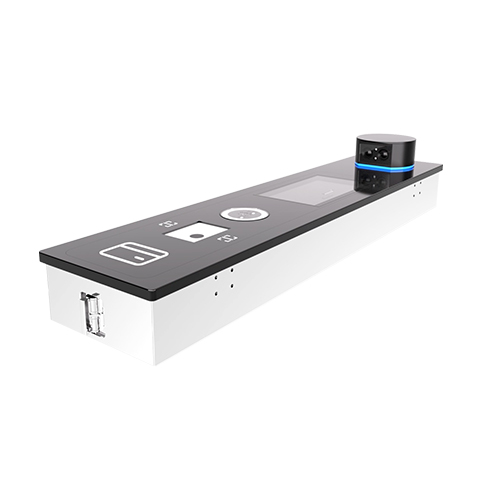

  Zophon-S1000

• Display

  7-inch LCD Screen (1024*600 Pixels) (Optional)

• Camera

  2MP Binocular Camera (field of view as wide as 118.9°)

• Hardware

  CPU: Quad-core A55, Up to 2.0GHz

• Authentication Method

  Face / RFID( standard), Palm / QR Code (optional)

• Face Template Capacity

  100,000 (1:N)

• Palm Template Capacity

  50,000 (1:N)

• Card/QR Capacity

  100,000 (1:N)

• Transaction Capacity

  1,000,000

• Biometric Authentication Speed

  less than 0.5 sec (Facial Recognition)
  less than 0.5 sec (Palm Recognition)

• Touchless Biometric Authentication Distance

  50cm to 200cm (Facial Recognition)
  5cm to 15cm (Palm Recognition)

• False Acceptance Rate (FAR)%

  FAR ≤ 0.01% (Visible Light Facial Recognition)
  FAR ≤ 0.001% (Palm)

• False Rejection Rate (FRR)%

  FRR ≤ 0.02% ( Visible Light Facial Recognition)
  FRR ≤ 0.17% (Palm)

• Biometric Algorithm

  ZKFace V3.9 & PalmElite3.3.3

• QR code

  1D: Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar,Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code11, Industrial 2 of 5, Standard 2 of 5,MSI etc.2D QR code (dynamic or static): QR / AZTEC/ PDF417/ DATAMATRIX

• Communication

  TCP/IP*1
  NFC (ISO/IEC 14443A)
  Wi-Fi (IEEE 802.1 a/b/g/n/ac) @2.4GHz ; 5GHz
  Wiegand Input *1
  RS485: ZKTeco RS485*1
  Aux Inputs *1, Electric Lock*1, Door Sensor*1, Exit Button*1, Alarm *1

• Standard Functions

  Block list, 14-digit User ID, Access Levels, Groups, Holidays, Anti-passback, Record Query, Schedule Bell, Multiple Verification Methods

• Optional Functions

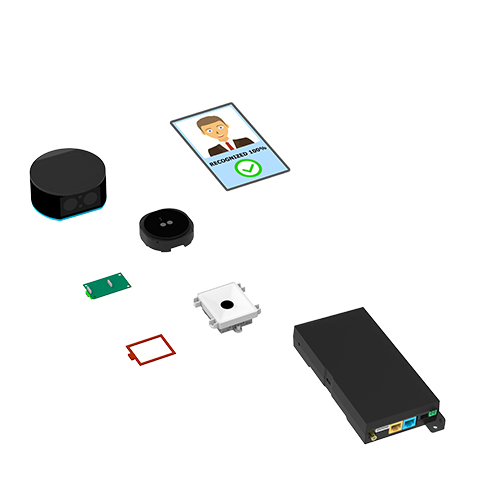

  Palm recognition module, QR Code reader module, LCD display module

• Power Supply

  24V DC 3A

• Operating Temperature

  -10°C to 55°C (Indoor application)

• Operating Humidity

  10% to 90% RH (Non-condensing)

• Dimensions

  Face recognition module (Φ92mm * 42mm)
  Palm recognition module (62mm * 62mm * 18mm)
  QR reader module (66mm * 65.13 * 22mm)
  RFID reader module (37.75mm * 49.80mm * 1.6mm)
  LCD display module (95.7mm * 162.5mm * 3mm)
  Access control module (94.34mm * 196mm * 29mm)

• Net Weight

  Face recognition module: 30g (single side) 40g (double side)
  Palm recognition module: 80g
  QR reader module: 20g
  RFID reader module: 10g
  LCD display module: 80g
  Access control module: 250g

• Supported Software

  ZKBio CVSecurity

• Installation

  Fasten with screws

• Housing Material

  Face recognition module: ABS plastic
  Palm recognition module: aluminum alloy
  LCD display module: N/A
  RFID reader: N/A
  RFID reader module: ABS plastic

• Ingress Protection Rating

  N/A

• Certifications

  CE, FCC, ISO9001, ISO14001, ISO20000
