Paramètres

• Model

  ZKIVA-EDGE X1 8-channel
  ZKIVA-EDGE X1 16-channel

• System

• Main Processor

  Embedded Quad-core Cortex 1.3GHz high performance microprocessor

• NPU

  28.8Tops@INT4

• Operating System

  Embedded LINUX

• Memory

  8GB DDR4

• Onboard Storage

  32GB eMMC

• Connection

• Compression

  H.265 / H.264

• Max IPC Video Input

  ZKIVA-EDGE X1 8-channel: 8 CH
  ZKIVA-EDGE X1 16-channel: 16 CH

• Display Split

  1/4/9 CH

• Video Compression

  H.265 / H.264

• Input Resolution

  8MP(3840*2160) / 4MP(2560*1440) / 2MP(1920*1080)

• Max. Channel Decoding Capability

  ZKIVA-EDGE X1 8-channel: 4CH*8MP or 8CH*4MP or 8CH*2MP IPC @25fps
  ZKIVA-EDGE X1 16-channel: 4CH*8MP or 8CH*4MP or 16CH*2MP IPC @25fps

• Max. Video Analytics Capability

  ZKIVA-EDGE X1 8-channel: 8CH * 2MP (1080P) @25fps
  ZKIVA-EDGE X1 16-channel: 16CH * 2MP (1080P) @25fps

• JPEG Capturing Capability

  3840 * 2160 @80FPS

• Stream Connecting Protoco

  RTSP

• Platform Software

  ZKBio CVSecurity V6.4.0_R & above

• Default Algorithm Categories

• Face

  Face Template Capture, Facial Authentication, Face Attribute Template Capture

• Face Templates

  Up to 300,000

• Person

  Human Capture Template, Body Attribute Template

• Vehicle

  Motor Vehicle Capture, Motor Vehicle Plate Capture, Non-Motor Vehicle Capture

• Video Structuration

  Face-to Human Relevant Binding, Human-to-Non Vehicle Relevant Binding, Vehicle-to-Plate Relevant Binding

• Basic Algorithms

  Perimeter Alert: wander, scaled the fence, intrusion, tripwire, climbing, parking prohibited, vehicle exit.
  Behavior Alert: running, falling, smoking, phone call, watch phone, sleeping on duty, leaving post duty, person over querying, person less querying, gathering, fighting
  Object Detection: goods forget, goods guard.
  People Counting: max number people counting statistics, entrance & exit people counting

• Algorithm Categories For Subscription

• Advance Algorithms

  Production Safety Scenario: safety cap detection, safety uniform detection, safety belt detection, reflective vest detection, fire detection, smoke detection, fire-equipment detection, oil spill detection, respirator detection
  Kitchen Scenario Surveillance Algorithms: mice detection, garbage can uncovered detection, chef's cloth detection, chef's hat detection, chef's respirator detection, rubber glove detection Petrol Station Scenario: static wire detection, discharge oil pipe detection, oil pipe break detection, oil machine side cover openning detection, oil tank truck detection

• Algorithm Chart (max numbers of algorithm can be run for channels)

• Algorithm Categories

  Default Standard Algorithms

• Face & Person & Vehicle

  ZKIVA-EDGE X1 8-channel: 8 (CH) * 1 (CAT)
  ZKIVA-EDGE X1 16-channel: 16 (CH) * 1 (CAT)

• Video Structure

  ZKIVA-EDGE X1 8-channel: 8 (CH) * 1 (CAT)
  ZKIVA-EDGE X1 16-channel: 16 (CH) * 1 (CAT)

• Perimeter Alert

  ZKIVA-EDGE X1 8-channel: 8 (CH) * 4 (CAT)
  ZKIVA-EDGE X1 16-channel: 16 (CH) * 4 (CAT)

• Behavior Alert

  ZKIVA-EDGE X1 8-channel: 8 (CH) * 4 (CAT)
  ZKIVA-EDGE X1 16-channel: 12 (CH) * 4 (CAT)

• Object Detection

  ZKIVA-EDGE X1 8-channel: 8 (CH) * 4 (CAT)
  ZKIVA-EDGE X1 16-channel: 16 (CH) * 4 (CAT)

• People Counting

  ZKIVA-EDGE X1 8-channel: 8 (CH) * 2 (CAT)
  ZKIVA-EDGE X1 16-channel: 16 (CH) * 2 (CAT)

• Production Safety Scenario

  ZKIVA-EDGE X1 8-channel: 8 (CH) * 4 (CAT)
  ZKIVA-EDGE X1 16-channel: 16 (CH) * 4 (CAT)

• Kitchen Scenario Surveillance

  ZKIVA-EDGE X1 8-channel: 8 (CH) * 4 (CAT)
  ZKIVA-EDGE X1 16-channel: 16 (CH) * 4 (CAT)

• Smart Community

  ZKIVA-EDGE X1 8-channel: 8 (CH) * 4 (CAT)
  ZKIVA-EDGE X1 16-channel: 16 (CH) * 4 (CAT)

• Petrol Station Scenario

  ZKIVA-EDGE X1 8-channel: 8 (CH) * 4 (CAT)
  ZKIVA-EDGE X1 16-channel: 16 (CH) * 4 (CAT)

• City Management Scenario

  ZKIVA-EDGE X1 8-channel: 8 (CH) * 4 (CAT)
  ZKIVA-EDGE X1 16-channel: 16 (CH) * 4 (CAT)

• Smart Site

  ZKIVA-EDGE X1 8-channel: 8 (CH) * 3 (CAT)
  ZKIVA-EDGE X1 16-channel: 16 (CH) * 3 (CAT)

• Algorithm Category Combination

  maximum 4 categories (each category no more than 4 types)

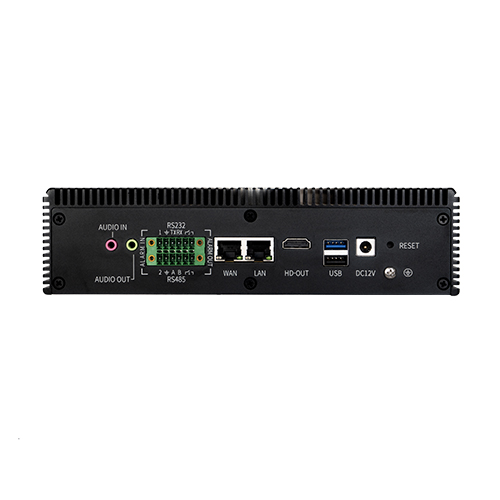

• Auxiliary Interface

• HDMI

  1 * HDMI (max. 1080P)

• Network Interface

  2 RJ-45 Port (10/100/1000Mbps self-adaptive)

• USB

  1 * USB 2.0; 1 * USB 3.0

• Audio Input/Output

  1/1

• Alarm Input/Output

  2/2

• RS-485

  1

• RS-232

  1

• Reset Button

  Support

• Power

• Power Indicator (RUN)

  1 (red+green dual color)

• Power Supply

  DC 12V ± 10% / 2A

• Power Consumption

  8W±10%

• General

• Operating Temperature

  -20°C ~ +60°C

• Operating Humidity

  10% ~ 90% RH (non-condensing)

• Storage Humidity

  10% ~ 90% RH (non-condensing)

• Installation

  Desktop / Cabinet mount

• Dimensions(L*W*H)

  232 x 217 x 75 (mm)

• Net Weight

  1.95 kg

• Gross Weight

  2.54 kg

• Certifications

  ISO 14001, ISO 9001, CE, FCC
