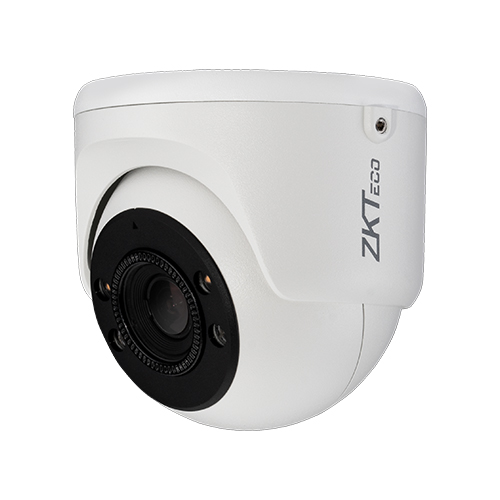

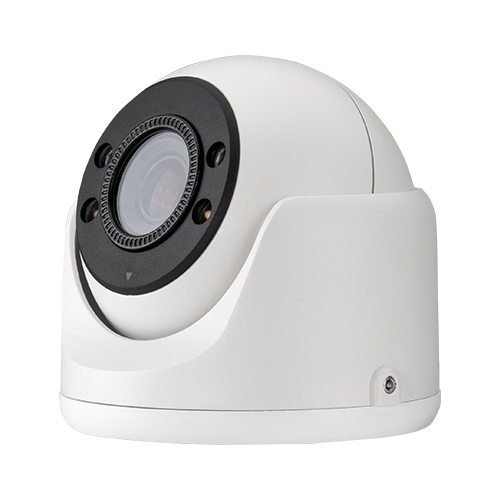

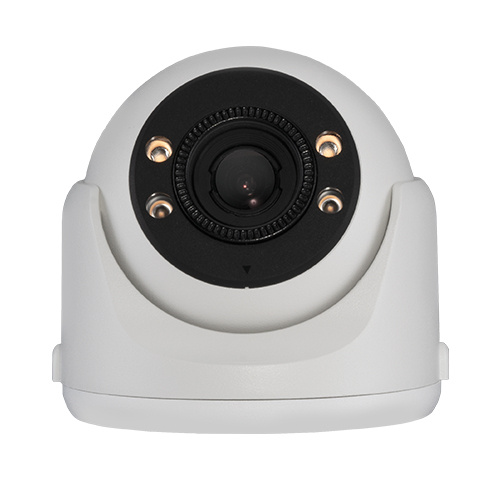

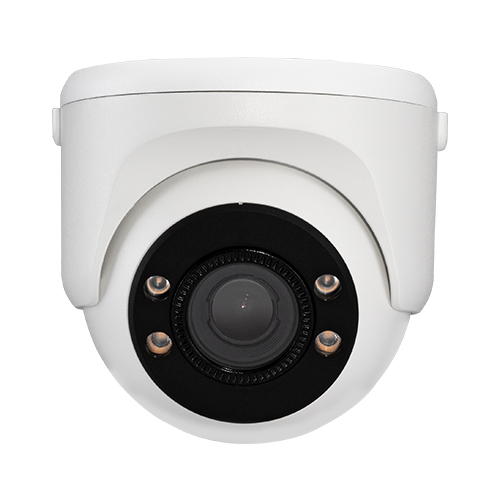

Les caméras IP intelligentes hybrides ZKBio Sense sont les caméras frontales de la solution de surveillance vidéo intelligente lancée par ZKTeco, basée sur l’algorithme d’apprentissage profond et la technologie de vision par ordinateur.
Grâce à l’utilisation d’un processeur avancé et puissant, associé à l’algorithme de classification intelligent intégré, les caméras IP hybrides intelligentes ZKBio Sense peuvent détecter et reconnaître avec précision deux types clés de cibles : les humains et les véhicules. Elles peuvent alors filtrer efficacement d’autres objets inutiles pour éviter les fausses alertes, telles que les animaux, les feuilles, les ombres et la pluie, etc.
Les caméras IP intelligentes hybrides ZKBio Sense améliorent considérablement l’efficacité et la sécurité de l’ensemble du système de vidéosurveillance , qui peut être largement utilisé dans différents scénarios tels que les écoles intelligentes, les bureaux, les parcs industriels, la communauté, la sécurité publique, etc.
Camera
Model
EL-854F48I-S3-S-HL
Image Sensor
1/3” 4 MP CMOS Sensor
Max. Resolution
2560 (H) × 1440 (V)
ROM
128 MB
RAM
256 MB
Scanning System
Progressive Scan
Electronic Shutter Speed
1/5 s to 1/100,000 s
Min. Illumination
0.001 Lux @ F1.7 to 3.3 (AGC on, Color)
0 lux (IR on, B & W)
S/N Ratio
> 52 dB
IR Range
80 m
White Light Range
30 m
Illuminator On/Off Control
Auto / Manual
Illuminator Number
4 × IR / White Light integrated LED
Smart IR
Support
Angle Adjustment for Installation
Pan: 0° to 360°
Tilt: 0° to 90°
Rotation: 0° to 360°
TV System
PAL / NTSC
Image Settings
Trigger mode, Brightness, Contrast, Saturation, Hue, Sharpness, AGC, White balance, Gamma, Backlight mode, adjustable by platform software or web browser
Software Reset Default
Support
General Function
Heartbeat, Mirror, Privacy mask, Log, Password reset
Lens
Lens Type
Motorized vari-focal
Lens Mount
M22
Mount Type
Board-in
Focal Length
3.6 to 10.8 mm
Max. Aperture
F1.7 to 3.3
Optical Zoom
3X
Field of View
FOV: 38° to 107°
Horizontal: 108° to 33°
Vertical: 57° to 18°
Diagonal: 130° to 38°
Iris Control Type
Fixed
Close Focus Distance
2 m
DORI Distance
Lens: Wide \ Telephoto
Detect: 45.8 m \ 105.6 m
Observe: 19.1 m \ 47.5 m
Recognize: 11.0 m \ 23.2 m
Identify: 6.0 m \ 10.3 m
Video
Video Compression
H.265 / H.264
Resolution
4 MP (2560 × 1440) / 2 MP (1920 × 1080) / 1.3 MP (1280 × 960) / 720 P (1280 × 720)
Max. Video Frame Rate
Main stream: 50 Hz (PAL): 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
60 Hz (NTSC): 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
Sub stream: 50 Hz (PAL): 25 fps (704 × 576, 640 × 480, 640 × 360)
60 Hz (NTSC): 30 fps (704 × 576, 640 × 480, 640 × 360)
Third stream: 50 Hz (PAL): 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
60 Hz (NTSC): 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
Video Stream Capability
Triple streams
Bit Rate Control
CBR / VBR
Video Bit Rate
H.264: 192 Kbps to 8 Mbps
H.265: 224 Kbps to 8 Mbps
Day / Night
Auto (ICR) / Color / B & W
BLC
Support
HLC
Support
WDR
120 dB True WDR
Scene Self-adaptation
Support
White Balance
Auto, Custom, Locked, Incandescent lamp, Warm light, Natural light, Fluorescent lamp
Gain Control
Low, Mid low, Mid, Mid high, High
Noise Reduction
2D / 3D NR
Motion Detection
Smart / Ordinary (4 areas)
Region of Interest (ROI)
Support (4 areas, Level 1 to 6)
Defog
N/A
Mirror
Support
Image Rotation
0° / 90° / 180° / 270° / Horizontal / Vertical
Privacy Masking
4 areas
Corridor Mode
Support
Digital Zoom
Support
Anti-flicker
N/A
Audio
Built-in MIC
N/A
Speaker
N/A
Audio Compression
G.711 ulaw
Environment Noise Filtering
Support
Audio Sampling Rate
8 kHz / 16 kHz / 32 kHz / 44.1 kHz / 48 kHz
Audio Bit Rate
64 Kbps (G.711 ulaw)
Intelligent Video Analytics
IVA (Perimeter Protection)
Line Crossing, Area Detection, Smart Motion Detection (human and vehicle targets classification)
Intelligent Search
Support fast retrieval by human and vehicle targets classification
Intelligent Video
Support fast retrieval by human and vehicle targets classification, playback and backup
Face Detection
Face Templates
N/A
Face Quality Filtering
N/A
Face Detected Per Frame
N/A
Detection Area
N/A
Detected Face Size
N/A
Capture Response
N/A
Alarm
Basic Alarm Event
Network disconnection, IP conflict, Illegal access, Motion detection, Video tampering, External alarm
Smart Alarm Event
Line Crossing, Area Detection, Smart Motion Detection (human and vehicle targets classification)
Alarm Linkage Actions
Notify surveillance center, trigger recording, trigger capture, send email
Network
Simultaneous Live View
Up to 15 channels
Network
1 RJ45 10 M / 100 M self-adaptive Ethernet port
SDK and API
Support SDK, API and ONVIF
Cyber Security
Video encryption; firmware encryption; configuration encryption; account lockout; security logs; IP filtering; trusted boot; trusted execution; trusted upgrade; password protection; complicated password; basic and digest authentication for HTTP / HTTPS; TLS; IP address filter; Security Audit Log
Protocol
TCP / IP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTSP, NTP, UPnP, SMTP, IPv4, UDP, SSL / TLS, PPPoE, SNMP, WebSocket
Interoperability
ONVIF Profile S / T / G
User / Host
Up to 256 users can be added. 3 user levels: admin, operator and guest
Network Storage
FTP
Web Browser
IE / Edge / Firefox / Chrome / Safari
Management Software
AntarVis 2.0 / ZKBioSecurity IVS / ZKBioAccess IVS / ZKBio CVSecurity / ZKBio CVAccess
Mobile Application
AntarView Pro+ (iOS & Android)
On-Board Storage
N/A
Operation System
Windows
P2P Cloud Service
Support
Port
Audio Input
1 (RCA port)
Audio Output
1 (RCA port)
Alarm Input
N/A
Alarm Output
N/A
Interface
Reset Button
N/A
ANR
N/A
USB
N/A
RS485
N/A
General
Power
Power Supply
PoE (IEEE802.3af, Class 3), DC 12 V ± 10% reverse polarity protection
Power Consumption
Basic ≤ 3 W (12 VDC); 4.5 W (PoE)
Power Interface
Ø 5.5 mm coaxial power plug
Structure
Casing Material
Aluminium Alloy
Dimensions
Φ102.00 x 93.20 (mm)
Net Weight
0.55 KG
Gross Weight
0.69 KG
Environment
Operating Conditions
–30 °C to +60 °C (–22 °F to +140 °F) / Humidity 95% or less (non-condensing)
Storage Conditions
–30 °C to +60 °C (–22 °F to +140 °F) / Humidity 95% or less (non-condensing)
Ingress Protection Rating
IP67 (waterproof and dustproof)
Certifications
Certificates
ISO9001, ISO14001, CE, FCC
Ordering Information
Type
4 MP IP Camera
Model
EL-854F48I-S3-S-HL
Descripton
4 MP Smart Hybrid Light Motorized Vari-focal Eyeball IP Camera
(Les membres Argent et supérieurs peuvent télécharger après s'être connectés)
EL-854F48I-S3-S-HL_Datasheet_20240905
Fiche technique
437.78KB
2024-09-29
ZK_Biosense Series Network Camera_UM_20240905
Manuel d’utilisation
4.15MB
2024-09-23
ZK_ IP Camera_QSG_20240905
Guide d’utilisation rapide
1.01MB
2024-09-23
