Paramètres

• Camera

• Model

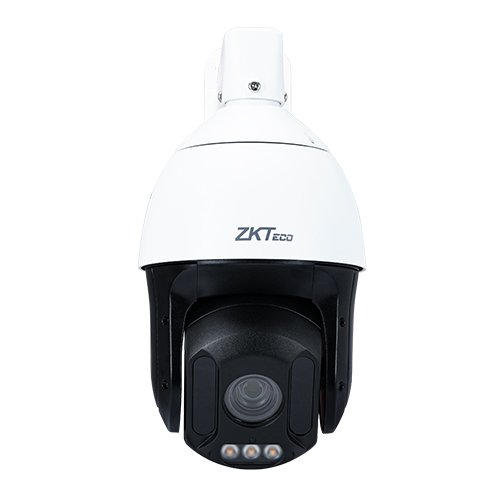

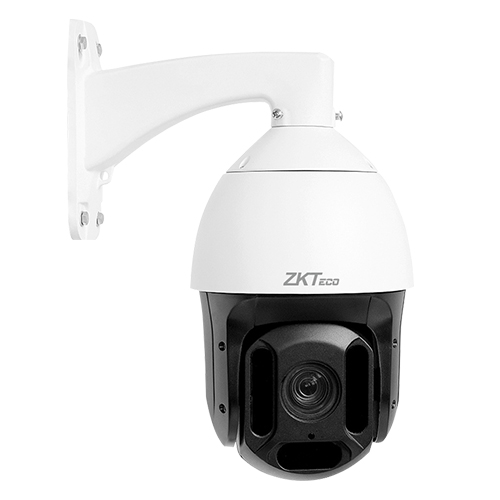

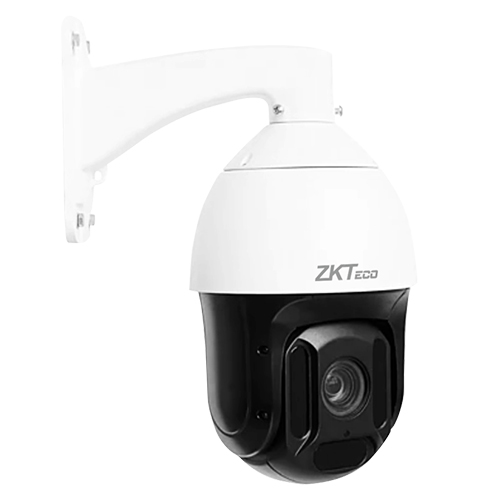

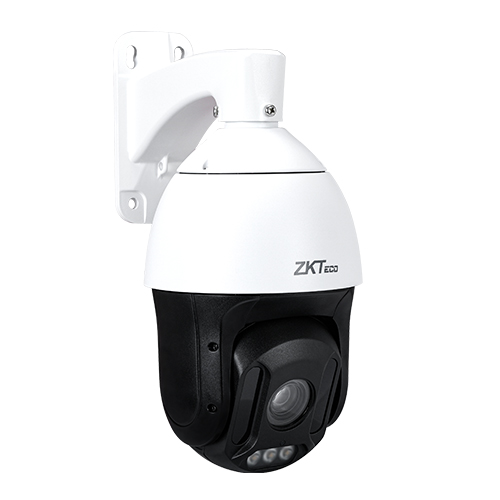

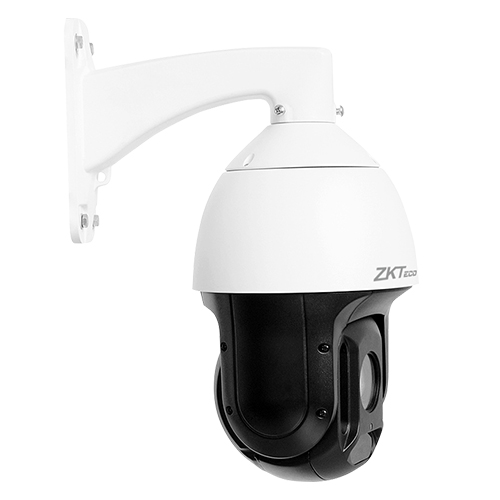

  PM-855PC20N-AD

• Image Sensor

  1/2.7” 5 MP CMOS Sensor

• Max. Resolution

  2592 (H) × 1944 (V)

• ROM

  128 MB

• RAM

  256 MB

• Scanning System

  Progressive Scan

• Electronic Shutter Speed

  1/5 s to 1/100,000 s

• Min. Illumination

  0.001 Lux @ F1.7 to F3.3 (AGC on, Color)
  0 Lux (IR on, B & W)

• S/N Ratio

  > 52 dB

• IR Range

  120 m

• White Light Range

  30 m

• Illuminator On/Off Control

  Auto / Manual

• Illuminator Number

  4 × IR LED, 3 × White Light LED

• Strobe Light

  N/A

• Smart IR

  Support

• Angle Adjustment for Installation

  Pan: 0° to 360°
  Tilt: 0° to 90°
  Rotation: 0° to 360°

• TV System

  PAL / NTSC

• Image Settings

  Trigger mode, Brightness, Contrast, Saturation, Hue, Sharpness, AGC, White balance, Gamma, Backlight mode, adjustable by platform software or web browser

• Software Reset Default

  Support

• General Function

  Heartbeat, Mirror, Privacy mask, Log, Password reset

• Lens

• Lens Type

  Motorized vari-focal

• Lens Mount

  M32

• Mount Type

  Board-in

• Focal Length

  4.7 to 94 mm

• Max. Aperture

  F1.7 to F3.3

• Optical Zoom

  20X

• Field of View

  64° (W) to 3.2° (T)

• Iris Type

  Fixed

• Close Focus Distance

  2 m

• DORI Distance

  Lens: Wide / Telephoto
  Detect: 482 m / 1060.0 m
  Observe: 228 m / 420.4 m
  Recognize: 111 m / 210.0 m
  Identify: 61 m / 105.8 m

• P/T

• Pan / Tilt Range

  Pan: 0° to 360°, Tilt: -10° to 90°

• Pan Speed

  0.1° to 200°/s

• Tilt Speed

  0.1° to 180°/s

• Preset

  225

• Pattern Group

  4

• Preset Speed

  10-Level selection

• Auto Mode

  Support Idle motion, Power-on auto detection, Rotation speed changes with optical zoom proportionally

• Protocol

  Pelco-D

• Tour Group

  8

• A-B Scan Group

  N/A

• Video

• Video Compression

  H.265 / H.264

• Resolution

  5 MP (2592 × 1944) / 4 MP (2560 × 1440) / 2 MP (1920 × 1080) / 1.3 MP (1280 × 960) / 720 P (1280 × 720)

• Max Video Frame Rate

  Main Stream: 50 Hz (PAL): 25 fps (2592 × 1944, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720); 60 Hz (NTSC): 30 fps (2592 × 1944, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
  Sub Stream: 50 Hz (PAL): 25 fps (704 × 576, 640 × 480, 640 × 360); 60 Hz (NTSC): 30 fps (704 × 576, 640 × 480, 640 × 360)
  Third Stream: N/A

• Video Stream Capability

  Dual streams

• Bit Rate Control

  CBR / VBR

• Video Bit Rate

  H.264: 896 Kbps to 8 Mbps
  H.265: 1024 Kbps to 8 Mbps

• Day / Night

  Auto (ICR) / Color / B & W

• BLC

  Support

• HLC

  Support

• Scene Self-adaptation

  Support

• WDR

  120 dB True WDR

• White Balance

  Auto, Custom, Locked, Incandescent lamp, Warm light, Natural light, Fluorescent lamp

• Gain Control

  Low, Mid low, Mid, Mid high, High

• Noise Reduction

  2D / 3D NR

• Motion Detection

  Smart / Ordinary (4 areas)

• Region of Interest (ROI)

  Support (4 areas, Level 1 to 6)

• Defog

  N/A

• Mirror

  Support

• Image Rotation

  0° / 180° / Horizontal / Vertical

• Privacy Masking

  4 areas

• Corridor Mode

  Support

• Digital Zoom

  Support

• Anti-flicker

  N/A

• Audio

• Built-in MIC

  N/A

• Built-in LoudSpeaker

  N/A

• Environment Noise Filtering

  Support

• Audio Compression

  G.711 ulaw

• Audio Sampling Rate

  8 kHz / 16 kHz / 32 kHz / 44.1 kHz / 48 kHz

• Audio Bit Rate

  64 Kbps (G.711 ulaw)

• Intelligent Video Analytics

• IVA (Perimeter Protection)

  Target Counting, Object Lost/Left, Line Crossing, Area Detection, Smart Motion Detection (human and vehicle targets classification)

• Intelligent Search

  Support fast retrieval by human and vehicle targets classification

• Intelligent Video

  Support fast retrieval by human and vehicle targets classification, playback and backup

• Intelligent Tracking

  Support auto tracking by human and vehicle targets classification

• Face Detection

• Face Templates

  N/A

• Face Quality Filtering

  N/A

• Face Detected Per Frame

  N/A

• Detection Area

  N/A

• Detected Face Size

  N/A

• Capture Response

  N/A

• Alarm

• Basic Alarm Event

  SD card error, Network disconnection, IP conflict, Illegal access, Motion detection, Video tampering, External alarm

• Smart Alarm Event

  Target Counting, Object Lost/Left, Line Crossing, Area Detection, Smart Motion Detection

• Alarm Linkage Actions

  Upload to memory card / FTP, notify surveillance center, trigger recording, trigger capture, send email

• Network

• Simultaneous Live View

  Up to 10 channels

• Network

  1 RJ45 10 M / 100 M self-adaptive Ethernet port

• SDK and API

  Support SDK, API and ONVIF

• Cyber Security

  Video encryption; firmware encryption; configuration encryption; account lockout; security logs; IP filtering; trusted boot; trusted execution; trusted upgrade; password protection; complicated password; basic and digest authentication for HTTP / HTTPS; TLS; IP address filter; Security Audit Log

• Protocol

  TCP / IP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTSP, NTP, UPnP, SMTP, IPv4, UDP, SSL / TLS, PPPoE, SNMP, WebSocket

• Interoperability

  ONVIF Profile S / T / G

• User / Host

  Up to 256 users can be added. 3 user levels: admin, operator and guest

• Network Storage

  FTP, Micro-SD card, auto network replenishment (ANR)

• Web Browser

  IE / Edge / Firefox / Chrome / Safari

• Management Software

  AntarVis 2.0 / ZKBioSecurity IVS / ZKBioAccess IVS / ZKBio CVSecurity / ZKBio CVAccess

• Mobile Application

  AntarView Pro+ (iOS & Android)

• On-Board Storage

  Micro-SD card slot (support max. 256 GB)

• Operation System

  Windows, MacOS

• P2P Cloud Service

  Support

• Port

• Audio Input

  1

• Audio Output

  1

• Alarm Input

  2

• Alarm Output

  1

• INTERFACE

• Reset Button

  Support

• ANR

  Support

• USB

  N/A

• RS485

  Support

• General

• Power

• Power Supply

  PoE (IEEE802.3at, 30 W), DC 12 V ± 10% 4 A reverse polarity protection

• Power Consumption

  Basic 22 W (12 VDC); 30 W (PoE)

• Power Interface

  Ø 5.5 mm coaxial power plug

• Structure

• Casing Material

  Aluminium Alloy + Plastics

• Dimensions

  376 × 185 × 277 (mm)

• Net Weight

  5 kg

• Gross Weight

  5.5 kg

• Environment

• Operating Conditions

  –30 °C to +60 °C (–22 °F to +140 °F) / Humidity 95% or less (non-condensing)

• Storage Conditions

  –30 °C to +60 °C (–22 °F to +140 °F) / Humidity 95% or less (non-condensing)

• Protection Rating

  IP66

• Certificates

  ISO9001, ISO14001, CE, FCC
