Paramètres

• Model

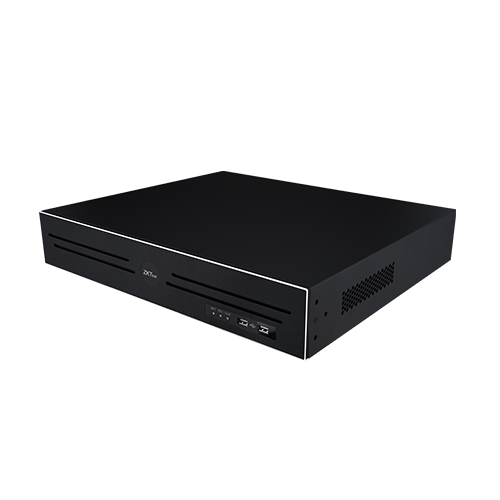

  Z8616NMR-S

• System

• Main Processor

  Multi-core embedded processor

• Operating System

  Embedded LINUX

• Operation Interface

  Web browser & Local GUI

• Video and Audio

• Max IPC Video Input

  16CH

• Two-way Talk

  Support

• Audio Compression

  G.711u

• Max Audio Input

  16CH by IPC

• Third Party Camera Access

  ONVIF & RTSP

• Live View

• Display Split

  1/4/6/8/9/13/16CH

• Resolution

  12MP(4000*3000)/8MP(3840*2160) / 5MP(2592*1944) / 2MP(1920*1080) /1.3MP(1280*1024) / 1MP(1280*720) / D1(1024*768)

• Live View Capability

  Local AI OFF: 2CH@12MP; 4CH@8MP, 9CH@3MP, 13CH@2MP; 16CH@2MP(25/30fps)
  Local AI ON: 2CH@12MP; 4CH@8MP, 9CH@3MP, 13CH@2MP; 16CH@2MP(25/30fps)

• Recording

• Video Compression

  H.265+ / H.265 / H.264

• Recording Resolution

  12MP/8MP/5MP/3MP/1080P/960P/720P/D1/VGA/4CIF/DCIF/2CIF/CIF/QCIF

• Max. Decoding Capability

  Local AI OFF: 2CH@12MP; 4CH@8MP, 9CH@3MP, 13CH@2MP; 16CH@2MP(25/30fps)
  Local AI ON: 2CH@12MP; 4CH@8MP, 9CH@3MP, 13CH@2MP; 16CH@2MP(25/30fps)

• Incoming Bandwidth

  Local AI OFF: 192 Mbps
  Local AI ON: 160 Mbps

• Outgoing Bandwidth

  Local AI OFF: 256 Mbps
  Local AI ON: 256 Mbps

• Stream Type

  Video, Video & Audio

• Bit Rate

  Main Stream: 16Kbps ~ 12288Kbps
  Sub Stream: 50Kbps ~ 4096Kbps

• Storage Method

  Local hard drive and network

• Record Mode

  Schedule, Manual, Motion Detection, IVA Events Alarm

• Record Interval

  1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 1~ 10 min

• Playback and Backup

• Playback Channel

  16CH synchronously playback

• Search Mode

  Time / Date, Alarm Types, IVA Search

• Playback Function

  Play, Stop, Play Forward, Play Backward, 30 Seconds Forward, 30 Seconds Backward, Fast Play, Slow Play, Single Frame Play, Hide/Show Time Bar, Backup, Snapshot, Full Screen

• Backup Mode

  USB Device / Network Remote

• Intelligent Video Analytics

• IVA by Camera

  Line Crossing, Area Detection, Smart Motion Detection (base on human and vehicle classification), Target Counting, Object Lost/Left

• Local IVA Functions

  Line Crossing, Area Detection, Smart Motion Detection (base on human and vehicle classification), Target Counting, Object Lost/Left

• IVA by Device(Number of Channels)

  4

• IVA by Camera (Number of Channels)

  16

• IVA Alarm

• Smart IVA Alarm

  Line Crossing, Area Detection, Smart Motion Detection (base on human and vehicle classification), Target Counting, Object Lost/Left

• Regular Detection

  Motion Detection / Video Shelter / Video Loss

• Anomaly Alarm

  HDD Full, No HDD, S.M.A.R.T error, Network disconnected, IP conflict

• Alarm Linkage Actions

  Preview, Recording, Snapshot,Buzzer, Preset, Email, Tour, Upload center

• Smart Search

  Support smart search out target video by human and vehicle classification filtering

• Network

• Network Protocol

  TCP/IP, HTTP,HTTPS, ONVIF, DHCP, DNS, DDNS, RTSP, NTP, UPnP, SMTP, IPv4/IPv6, UDP, SSL/TLS, PPPoE, WebSocket, ICMP, IGMP, RTP, RTCP, ARP

• Max. Online Users

  30

• Web Browser

  Google Chrome / Microsoft Edge / Firefox / Safari

• Operation System

  Windows7/10/11

• Management Platform

  ZKBio CVSecurity / CVAccess / AntarVis 2.0

• Mobile Application

  AntarView Pro+ (iOS & Android) or AntarView Plus (iOS & Android) [depends on firmware version]

• P2P Cloud Service

  Support

• Interoperability

  ONVIF Profile S/T/G, SDK, CGI, API

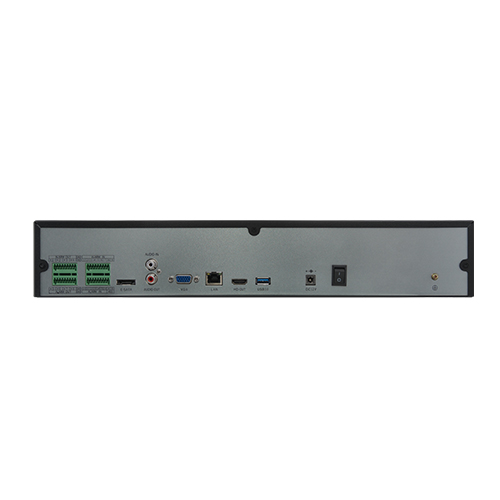

• Storage & Auxiliary Interface

• SATA Ports

  4 SATA Port, up to 16 TB capacity each (support Hot Swap)

• eSATA

  Support

• Raid 0 / 1 / 5

  Support

• HDMI

  1*HDMI (3840*2160@30Hz, 1920*1080/60Hz, 1280*1024/60Hz)

• VGA

  1*VGA(1920*1080/60Hz, 1280*1024/60Hz) (support independent output)

• Network Interface

  1*RJ-45 Port (10/100/1000 Mbps self adaptive)

• PoE Ports

  N/A

• Standard

  N/A

• USB

  2*USB 2.0, 1*USB 3.0

• Audio Input/Output

  1 In / 1 Out

• Alarm Input/Output

  16 In / 8 Out

• RS-485

  Support

• RS-232

  N/A

• Power

• Power Supply

  AC220~240V, 50Hz~60Hz

• Power Consumption

  ≤72W (without HDD)

• General

• Casing

  1.5U

• Working Temperature

  -10°C ~ 55°C / 14°F ~ 131°F

• Working Humidity

  10% ~ 90%

• Storage Humidity

  10% ~ 90%

• Operating Altitude

  3,000 m (9,842.52 ft)

• Installation

  Desktop / Cabinet mount

• Dimensions(L*W*H)

  439.6*376*75.7(mm)

• Net Weight

  5.15KG

• Certifications

  CE-LVD; CE-EMC; FCC certification

• Environment

  CE-RoHS, WEEE, Reach self-declaration
