Paramètres

• Model Name

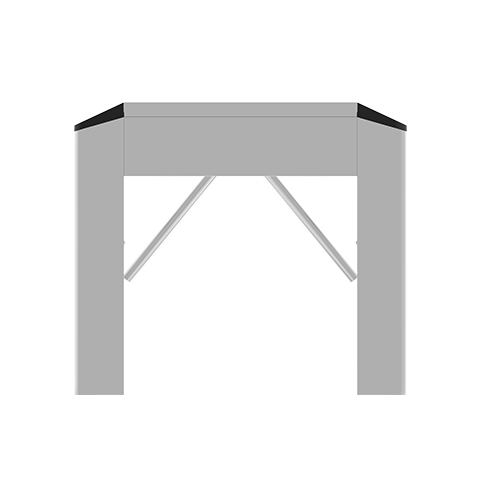

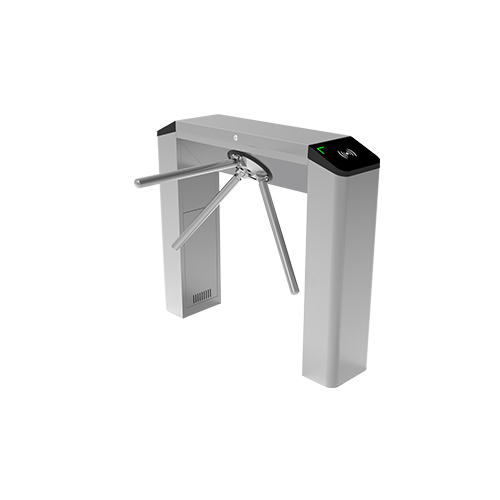

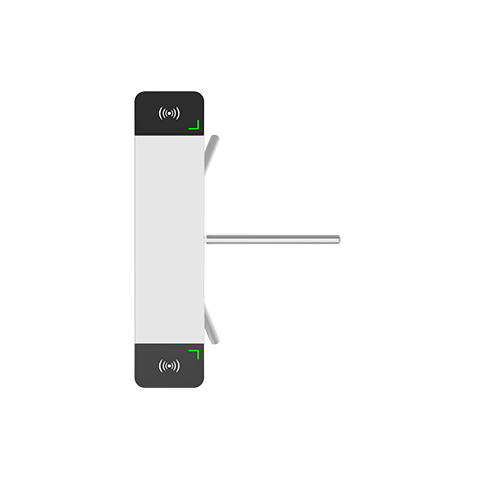

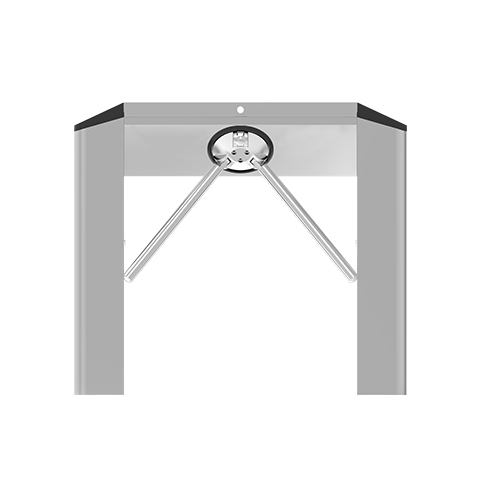

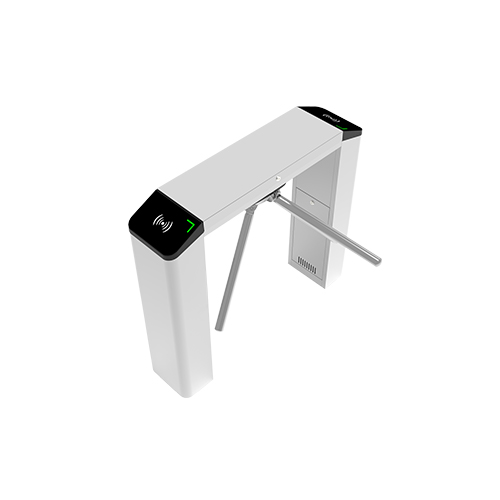

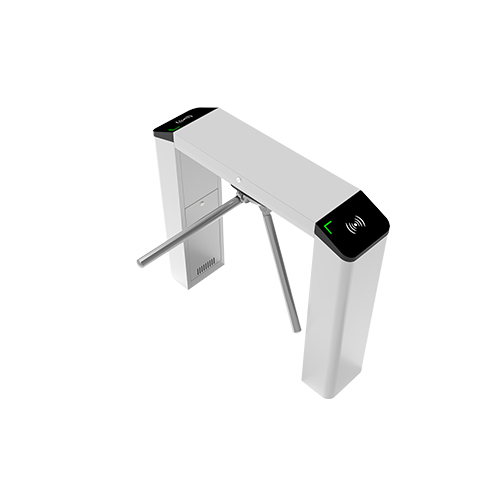

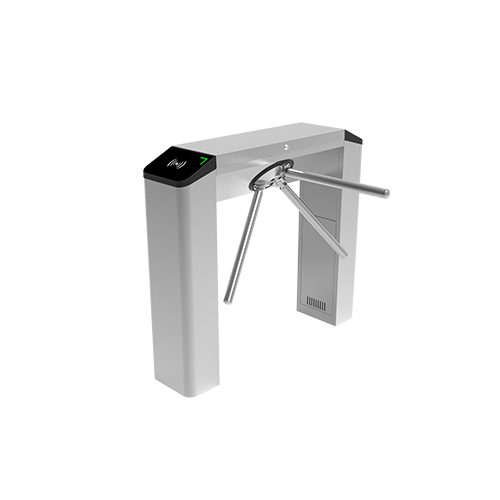

  TS2000 Plus Series

• Visual Indicator

  Steady green = Normal use
  Steady red = Barrier closed

• Audio Indicator

  Internal buzzer

• Lane Type

  Single lane

• Lane Width (mm)

  550

• Barrier Movement Type

  Rotating

• Lid Material

  PC Plastics+Tempered Glass Cover+SUS304 Stainless Steel

• Lid Options Authentication Methods

  Streamlined under mount options: Fingerprint / RFID

• Chassis Material

  SUS304 stainless steel (T=1.2mm)

• Chassis Color

  Silver-gray

• Barrier Material

  SUS304 stainless steel

• Motherboard Function

  Door open duration, access mode

• Motherboard Communication

  Fire alarm port (relay)*1, RS485 port *1

• Controller

  C3-200 Pro Plus & InBio260 Pro Plus (Recommended)
  Other controller depends on dimensions fitting in (Optional)

• Credential Options

  Under mount RFID reader: ProID Series, KR Series (Supported model)
  Under mount fingerprint reader: FR1200 / FR1500S

• Flow Rate

  RFID: 25 passengers per minute
  Fingerprint: 20 passengers per minute

• Barrier Width

  515mm

• Footprint (mm*mm)

  260 * 1110

• Accessibility

  Wireless remote control, wired remote control, QR reader

• Power Supply

  110V / 220V AC@50 to 60 Hz, DC 12V

• Power Rating

  10VA (standby)
  40VA (operation)

• Fire Signal

  Input for voltage free contact

• Noise Level

  Less than 65dB

• MTTR

  ess than 60 minutes

• MCBF

  2 million

• Weight (kg)

  Gross weight (35kg)
  Net weight (30kg)

• Dimension (L*W*H)

  775 * 1100 * 980mm

• Operating Temperature

  -20°C to 70°C

• Operating Humidity

  0% to 85% RH (Non-condensing)

• Certifications

  CE, FCC, UKCA, ISO 9001

• Ingress Protection Rating

  IPX4

• Supported Software

  ZKBio CVAccess / ZKBio CVSecurity
  (depends on equipped access controller)

• Safety Features

  Voltage free contact input for fire alarm fail state automatic drop arm during power off

• Security Features

  Anti-tailgating

• Product Delivery

  press-assembled

• Application Environment

  Indoor / outdoor (if sheltered)

• Site Preparation

  Flat & level finished floor (base plate in options for unfinished floor)

• Dimensions with Packing ( L*W*H )

  360 * 1210 * 1080mm

• Security Level

  Medium

• Emergency Mode

  Support (drop arm)

• Packing Material

  Cartoon (Standard), wooden (Optional)
