Paramètres

• Model

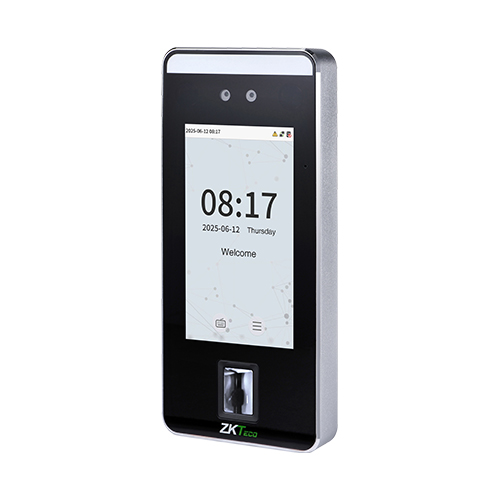

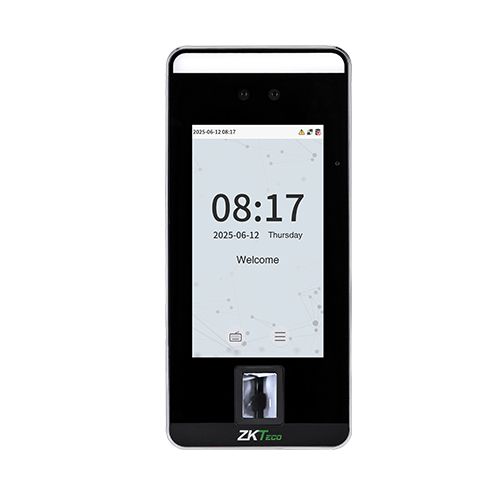

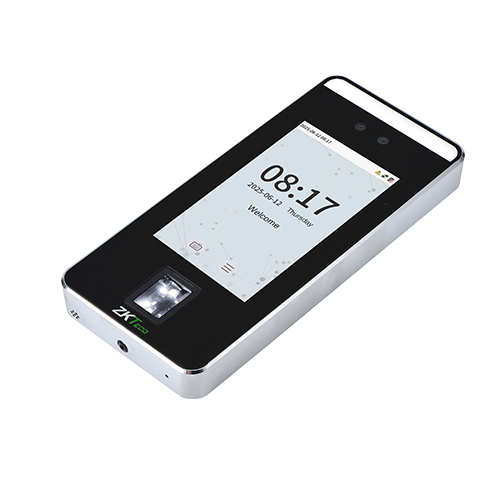

  SpeedFace-V5L

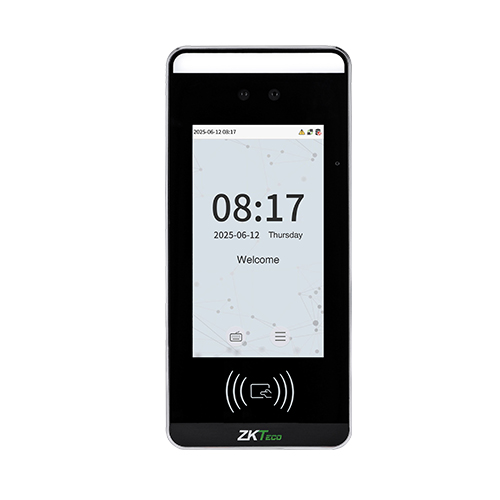

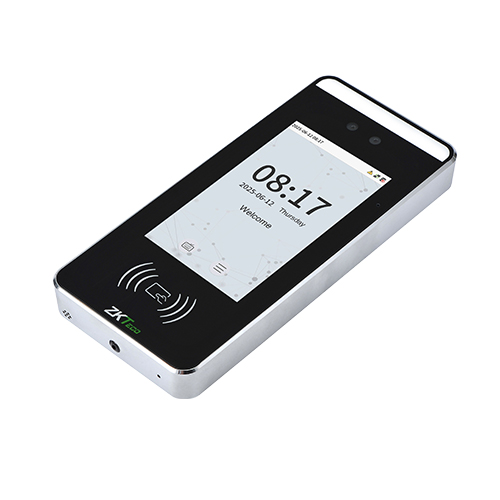

  SpeedFace-V5L-RFID

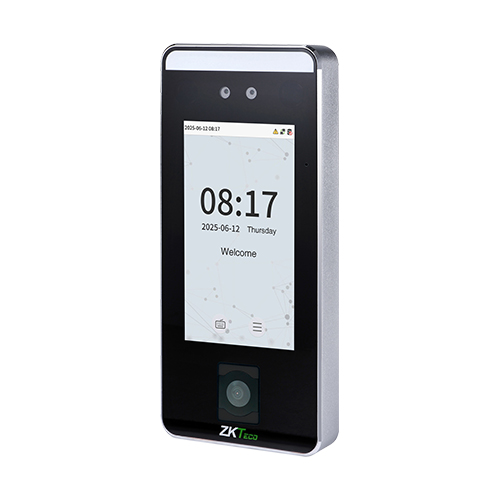

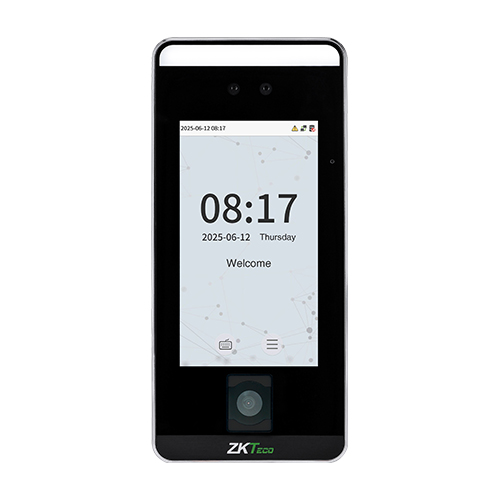

  SpeedFace-V5L[QR]

• Order ID

  SpeedFace-V5L: AC01-SP14H-P47
  SpeedFace-V5L-RFID: AC01-SP12H-P47
  SpeedFace-V5L[QR]: AC01-SP15H-P47

• Display

  5"@ ISP Color LCD Screen (720*1280)

• Camera

  Binocular Camera @ 2MP WDR

• Operation System

  Linux

• Hardware

  SpeedFace-V5L: CPU: Quad Core A55 @1.2GHz; RAM: 1GB; ROM: 8GB; Supplement Light: Yes; Virtual Keypad: 16 Keys; Fingerprint Sensor: Z-ID; Casing Color: Metallic silver
  SpeedFace-V5L-RFID: CPU: Quad Core A55 @1.2GHz; RAM: 1GB; ROM: 8GB; Supplement Light: Yes; Virtual Keypad: 16 Keys; Casing Color: Metallic silver
  SpeedFace-V5L[QR]: CPU: Quad Core A55 @1.2GHz; RAM: 1GB; ROM: 8GB; Supplement Light: Yes ; Physical Keypad: 16 Keys; Casing Color: Metallic silver

• Authentication Method

  SpeedFace-V5L: Fingerprint / Face / Card / Password (Virtual Keypad)
  SpeedFace-V5L-RFID: Face / Card / Password (Virtual Keypad)
  SpeedFace-V5L[QR]: Face / Card / Password (Virtual Keypad)

• Fingerprint Template Capacity

  SpeedFace-V5L: 10,000 (1:N)
  SpeedFace-V5L-RFID: /
  SpeedFace-V5L[QR]: /

• Face Template Capacity

  10,000 (1:N)

• Card Capacity

  10,000 (1:N)

• User Capacity

  10,000 (1:N)

• Transaction Capacity

  200,000 (1:N)

• Max. User Password Length

  8 Digits

• Biometric Authentication Speed

  SpeedFace-V5L: less than 0.5 sec (Fingerprint) ; less than 0.35 sec(Facial Authentication)
  SpeedFace-V5L-RFID: less than 0.35 sec (Facial Authentication)
  SpeedFace-V5L[QR]: less than 0.35 sec (Facial Authentication)

• Touchless Biometric Recognition Distance

  30cm to 170cm (Facial authentication)

• False Acceptance Rate (FAR) %

  SpeedFace-V5L: ≤0.01% (Facial authentication) ; ≤0.0001% (Fingerprint)
  SpeedFace-V5L-RFID / SpeedFace-V5L[QR]: ≤0.01% (Facial authentication)

• False Rejection Rate (FRR) %

  SpeedFace-V5L: ≤0.02% (Facial authentication) ; 0.01% (Fingerprint)
  SpeedFace-V5L-RFID / SpeedFace-V5L[QR]: ≤0.02% (Facial authentication)

• Biometric Algorithm

  SpeedFace-V5L: ZKFace V3.6 ZKFingerprint V13.0 (Standard) / V10.0 (Optional)
  SpeedFace-V5L-RFID \ SpeedFace-V5L[QR]: ZKFace V3.6

• Card Type

  SpeedFace-V5L:
  ID Card@125kHZ (Optional); IC Card@13.56 MHz (Optional);

  Optional Multi-Tech Module:
  Module1: ID & IC & DESFire EV1 / EV2 & Felica; (125 kHz & 13.56 MHz Dual Frequency); Module 2: ID & IC & DESFire EV1/EV2 & FeliCa & HID Prox & HID iClass (125 kHz & 13.56 MHz Dual Frequency)

  SpeedFace-V5L-RFID \ SpeedFace-V5L[QR]:
  ID Card@125kHZ (Standard); IC Card@13.56 MHz (Optional)

  Optional Multi-Tech Module:
  Module1: ID & IC & DESFire EV1 / EV2 & Felica; (125 kHz & 13.56 MHz Dual Frequency)
  Module 2: ID & IC & DESFire EV1/EV2 & FeliCa & HID Prox & HID iClass
  (125 kHz & 13.56 MHz Dual Frequency)

• QR Code

  SpeedFace-V5L: /
  SpeedFace-V5L-RFID: /
  SpeedFace-V5L[QR]: Dynamic QR codes on the ZKBio; CVAccess mobile application

• Communication

  TCP/IP*1
  Wi-Fi (IEEE802.1b/g/n/a/ac/ax) @ 2.4 GHz / 5 GHz (Optional)
  Wiegand (Input & Output)*1
  RS485: ZKTeco RS485*1*
  Aux Inputs *1, Aux Outputs *1, Electric Lock*1, Door Sensor*1, Exit Button*1, Alarm*1

• Standard Functions

  ADMS, DST, Photo Capture, Event Photo Capture, Up to 14-digit User ID, Access Levels, Groups, Holidays, Anti-Passback, Record Query, Tamper Switch Alarm, Multiple Verification Methods, T9 Keyboard (Input), AC Push and TA Push Protocol Switch, HTTPs / SSH Backend Access, Mask Detection

• Optional Functions

  Video Door Phone: SIP Client (Version2.0), ONVIF (Compatible with Profile S, Profile T, Profile G, Profile C, Profile Q & Profile A), Wi-Fi, Webserver

• Video Intercom

  Video Intercom(ZKTeco Private Protocol via TCP/lP)
  Support Devices: Standalone Terminal: SpeedFace-V5L(Only ZAM230 Platform); Indoor Monitor: VT07-B01, VT07-B01-W

  Video Intercom (Standard SIP Protocol)
  Support Devices:
  Standalone Terminal: SpeedFace-V5L(Only ZAM230 Platform); Indoor Monitor: VT07-B22L, VT07-B26L-W; Software: ZKBio CVAccess, BioTalk Pro; Mobile App: ZKBio Zlink, ZKBio Zexus

• Access Control Interface

  RS485 (DM10 Controller 1 Door Expansion / RS485 Card Reader / Biometric Reader)

• Power Supply

  DC 12V 3A

• Operating Temperature

  -10°C to 45°C (14°F to 113°F)

• Operating Humidity

  10% to 90% RH (Non-condensing)

• Dimensions

  202.93mm*91.93mm*21.5mm (L*W*H)

• Net Weight

  0.6 Kg

• Supported Software

  On-Premise Software: ZKBio CVAccess (AC PUSH) & ZKBio Time (TA PUSH)
  Cloud-based Software: ZKBio Zlink (Supports Web Portal & Mobile App)

• Installation

  Wall-mount (Compatible with Asian Gang-box / Single Gang-Box)

• Certifications

  ISO14001, ISO9001, CE, FCC
