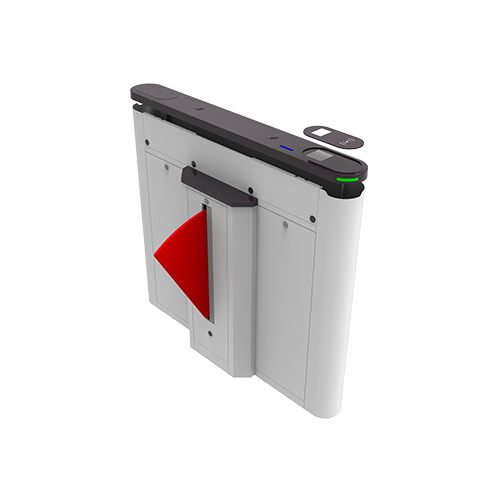

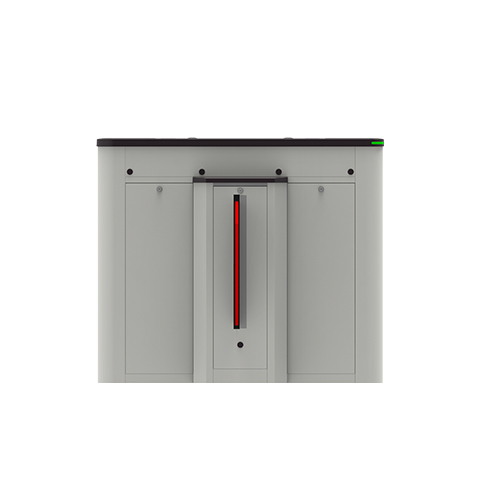

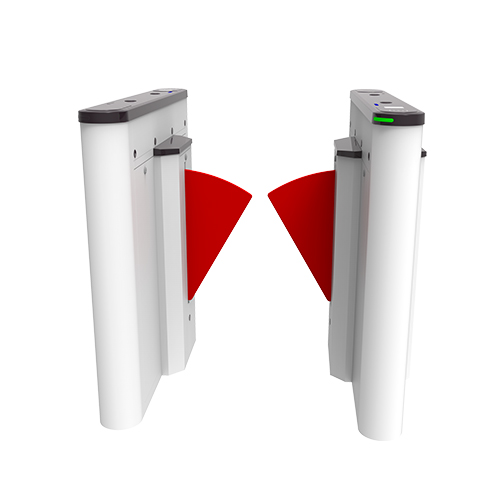

Saturn-F1000

La barrière de volets Saturn-F1000 de ZKTeco est à haute efficacité et conçue pour un contrôle d'accès efficace en intérieur comme en extérieur.

Construite avec un robuste châssis en acier SPCC laminé à froid et une barrière fap rétractable en polycarbonate (PC), la Saturn-F1000 garantit durabilité et sécurité tout en conservant une apparence modemn. Équipé d’un moteur sans balais à courant continu, le Saturn-f1000 offre un fonctionnement rapide, s’ouvrant ou se refermant en moins d’une seconde par mouvement. Le système intègre des fonctionnalités avancées telles que la détection anti-pinch et anti-tailgating, ainsi que plusieurs options d’authentification — y compris RFlD, code OR et reconnaissance faciale — répondant à divers besoins de sécurité. De plus, la Saturn-F1000 supporte un débit allant jusqu’à 30 passagers par minute (code RFlD / OR) et 15 passagers par minute (reconnaissance faciale), ce qui la rend idéale pour des applications à fort trafic.

Paramètres

Model Name

Saturn-F1000
Saturn-F1200
Audio Indicator

Speaker
Visual Indicator

LED Indicators
Steady blue = Standby, Steady green = Normal use
Steady red = Barrier close
Display

N/A
Lane Type

Saturn-F1000: Single Lane

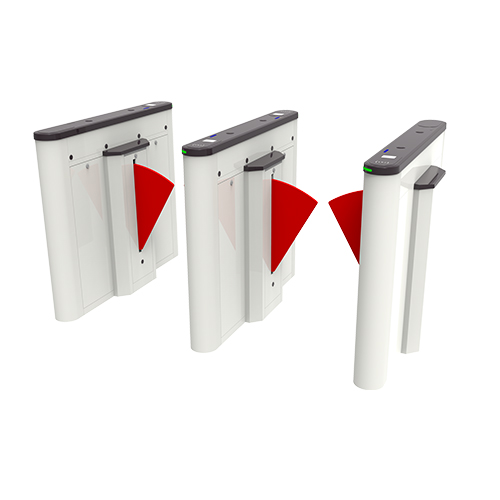

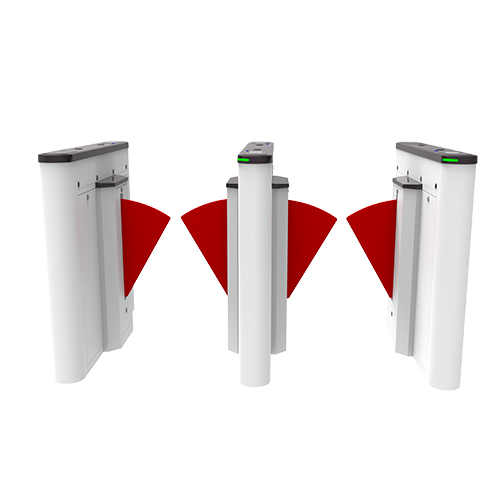

Saturn-F1200: Dual flap barriers for additional lane (with Saturn-F1000)
Lane Width

550 mm
Lane Height

1020 mm

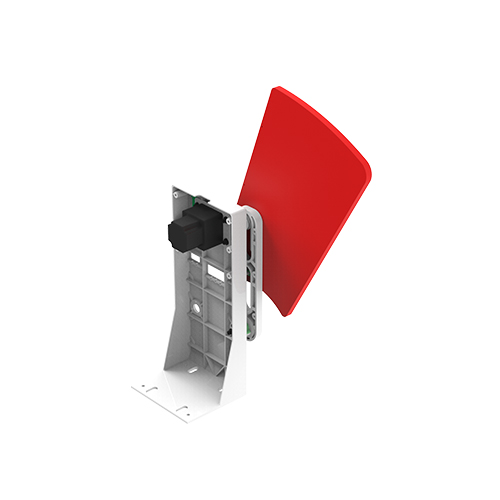

Barrier Movement Type

Retractable flap barrier (Polycarbonate)
Motor

DC brushless motor
Movement Speed

Less than 1s per movement (open / close timing)
Movement Accuracy

N/A
Clutch

N/A
Cabinet Lid Material

Cold-rolled SPCC Steel (GB700)
Lid Material

Polycarbonate+2.5D tempered glass
IR Sensors

5 pairs
Motherboard Function

System configuration, access mode conguration, anti-pinch configuration, anti-tailgate configuration etc.
Motherboard Communication

Fire alarm Port(Relay)*1, RS485 Port*1
Lid Options Authentication Methods

Streamlined under mount options: RFID / QR Code
Top mount options with mounting pole: Facial Recognition
(compatible with ProFace X / SpeedFace V5L / Elite Pass)
Chassis Material

Cold-rolled SPCC Steel (GB700
Chassis Colour

White
Controller

C3, InBio series or or third-party devices
Credential Options

Under mount RFID reader: (support model: ProID Series)
Under mount QR Code Reader: QR500
Top mount facial recogntion terminal:
ProFaceX/ Elite Pass/ SpeedFace V5L
Flow Rate

RFID: 30 passengers per minute
QR Code: 30 passengers per minute
Facial Recognition: 15 passengers per minute
Accessibility

Standard lane (550mm): Adult and children
Power Supply

110V / 220VAC @ 50-60 Hz
Power Rating

10VA (Standby), 40VA (Operation)
Fire Signal

Input for voltage free contact
Noise Level

Less than 60dB
MTTR

Less than 60minutes
MCBF

5 million
Weight

Saturn-F1000: Gross weight (60kg); Net weight (50kg)
Saturn-F1200: Gross weight (35kg); Net weight (30kg)
Dimensions ( L*W*H )

1200 * 306 * 1020mm
Dimensions with Packing ( L*W*H )

1345 * 360 * 1100mm
Operating Temperature

-20°C to 70°C
Operating Humidity

20% to 85% RH (non-condensing)
Certifications

CE, FCC
Ingress Protection Rating

IPX4
Supported Software

ZKBio CVAccess / ZKBio CVSecurity
(Depends on equipped access controller)
Safety Features

IR sensor safety detection
Logic voltage 24V DC
Voltage free contact input for fire alarm fail state
Auto opening on power off
Security Features

Anti-intrusion, anti-tailgating, wrong way enter alarm, automatically close door when no one pass
Product Delivery

Pre-assembled
Application Environment

Indoor/ Outdoor
Site Preparation

Flat & level finished floor (base plate in options for unfinished floor)
Security Level

Middle
Emergency Mode

Support (door unlock automatically)
Packing Material

Carton box
