Paramètres

• Model Name

  Saturn-S1000
  Saturn-S1200

• Audio Indicator

  Internal speaker

• Visual Indicator

  Top LED indicator:
  Blue = Door closed / stand by
  Green = Door opening
  Red = Door closing / alarm

  Slide LED indicator:
  Green = Lane available
  Red = Lane unavailable

• Display

  NA

• Lane Type

  Saturn-S1000: Single lane
  Saturn-S1200: Dual Swing (for additional lane)

• Lane Width

  650mm (Standard)
  900mm (Optional)

• Barrier Movement Type

  Swing

• Motor

  DC brushless motor

• Movement Speed

  Average 1s per movement (Adjustable open/close timing)

• Movement Accuracy

  NA

• Clutch

  NA

• Lid Material

  Polycarbonate+2.5D tempered glass

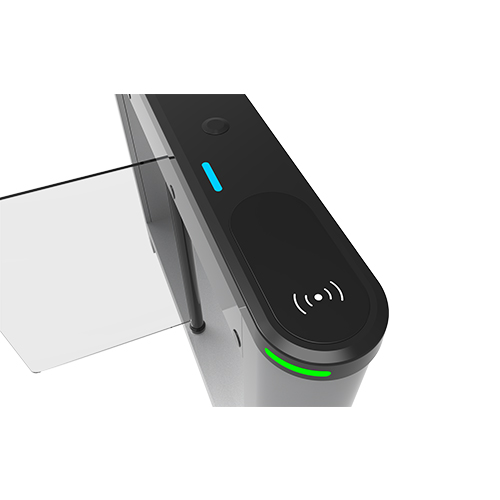

• Lid Options Authentication Methods

  Streamlined under mount options: QR Code / RFID
  Surface mount option: Facial Authentication

• Chassis Material

  Cold-rolled SPCC Steel (GB700) / Polycarbonate (Side Lid)

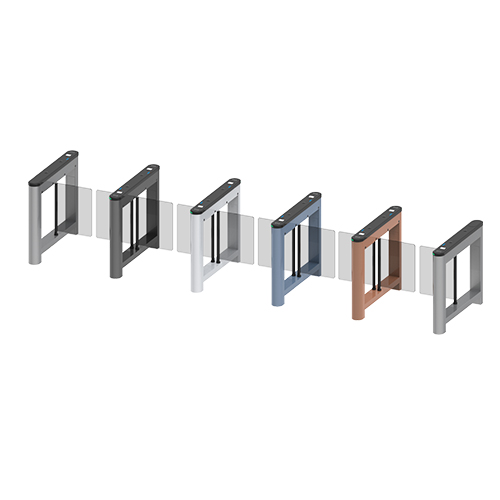

• Chassis Colour

  Pearl White(PWH), Space Gray(SGY), Carbon Black(CBK), Bay Blue(BBLE), Mist Brown(MBW)

• Barrier Material

  Clear acrylic (635*300mm)(standard) / Tempered glass (635*425mm)(optional)

• IR Sensors

  4 pairs

• Motherboard Function

  System configuration, access control

• Motherboard Communication

  Fire alarm port (relay)*1, RS485 port*1

• Controller

  Not equipped, allowing optional from C3 / InBio Series series or customization

• Credential Options

  Under mount RFID reader: (support model: Pro ID Series, KR Series)
  Under mount ngerprint reader: FR1200 / FR1500S

• Flow Rate

  Facial Authentication: 15 passengers per minute
  QR Code: 30 passengers per minute
  RFID: 35 passengers per minute

• Accessibility

  Adult, Children (with care), Disability (with care)

• Power Supply

  110V / 220V ±10% AC @50Hz/60Hz

• Power Rating

  10VA(Standby)
  40VA(Operation)

• Fire Signal

  Input for voltage free contact

• Noise Level

  Less than 60dB

• MTTR

  Less than 60 minutes

• MCBF

  3 million

• Weight

  Saturn-S1000: 50kg
  Saturn-S1200: 30kg

• Dimension (L*W*H)

  1200 * 150 * 1020 mm

• Dimensions with Packing ( L*W*H )

  Saturn-S1000:
  Carton (standard): 1265*220*1070 mm (2 boxes)
  Wooden box (optional): 1300*480*1224mm (1 box)

  Saturn-S1200:
  Carton (standard): 1265*220*1070mm (1 box)
  Wooden box (optional): 1300*260*1224mm (1 box)

• Operating Temperature

  -30 °C to 70 °C

• Operating Humidity

  5% to 90% RH (Non-condensing)

• Certifications

  CE, FCC

• Ingress Protection Rating

  IPX4

• Supported Software

  ZKBio CVAccess / ZKBio CVSecurity (Depends on equipped access controller)

• Safety Features

  Voltage free contact input for fire alarm fail state
  automatic swing barrier open during power off

• Security Features

  Anti-tailgating, anti-pinch

• Product Delivery

  Pre-assembled

• Application Environment

  Indoor / outdoor (if sheltered)

• Site Preparation

  Flat & level finished floor (base plate in options for unfinished floor)

• Security Level

  Low

• Emergency Mode

  Support (swing barrier open automatically)

• Packing Material

  Carton(standard) / Wooden(optional)

Télécharger

(Les membres Argent et supérieurs peuvent télécharger après s'être connectés)

• Nom
• Type
• Taille
• Date de mise à jour

• PDF

  ZK_Saturn-S1000 Series_Installation Guide_20241212

  Guide d’installation

  44.45MB

  2024-12-13

  Télécharger

• PDF

  ZK_Saturn-S1000 Series_User Manual_20241212

  Manuel d’utilisation

  6.3MB

  2024-12-13

  Télécharger

• PDF

  Saturn Series Swing Barrier Turnstile_Datasheet_20241212

  Fiche technique

  3.86MB

  2024-12-13

  Télécharger
