Paramètres

• Model Name

  Saturn-S2000
  Saturn-S2200

• Audio Indicator

  Internal speaker

• Visual Indicator

  Top LED indicator:
  Blue=Door closed/stand by
  Green=Door opening
  Red=Door closing/alarm

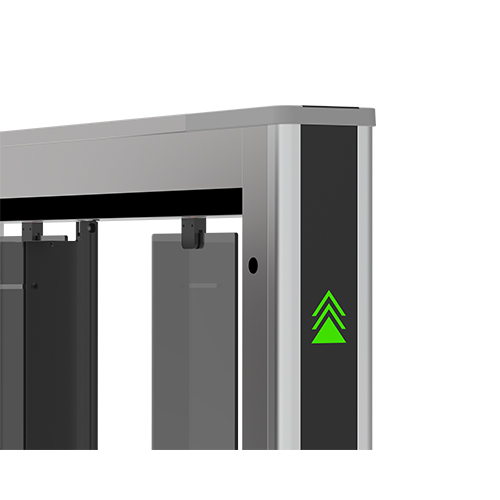

  Side LED indicator:
  Green=Lane available
  Red=Lane unavailable

• Display

  NA

• Lane Type

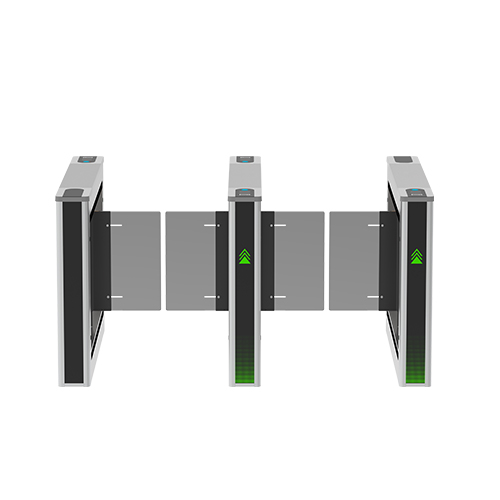

  Saturn-S2000: Single lane

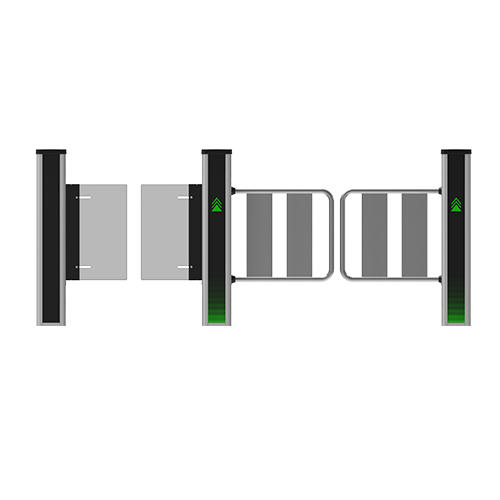

  Saturn-S2200: Dual Swing (for additional lane)

• Lane Width

  600~900mm (Optional) (Acrylic)
  Maximum 1200mm (Optional) (Stainless steel) (For two-wheeled motorcycle access)

• Barrier Movement Type

  Swing

• Motor

  DC brushless motor

• Movement Speed

  Average 1s per movement (Adjustable open/close timing)

• Clutch

  Equipped

• Movement Accuracy

  Middle

• Lid Material

  Stainless steel & Polycarbonate

• Lid Options Authentication Methods

  Streamlined under mount options: QR Code / RFID
  Surface mount option: Facial Authentication

• Chassis Material

  Stainless steel (SUS304) (Chassis Body) / Aluminum Alloy (Gate Column)

• Chassis Colour

  Gray (Standard)

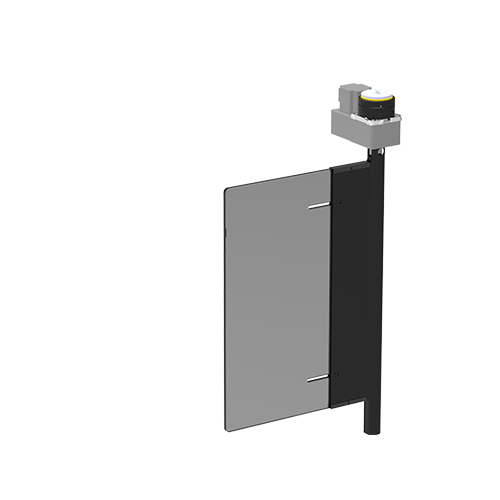

• Barrier Material

  Light gray transparent acrylic (305*555*10mm) (standard) /Light gray transparent acrylic (380*555*10mm) (optional) When the lane width is 900-1200mm, stainless steel barriers are required.

• IR Sensors

  12 pairs (standard) ;18 pairs (Optional)

• Motherboard Function

  System configuration, access control

• Motherboard Communication

  Fire alarm port (relay)*1, RS485 port*1

• Controller

  Compatible with C3 / InBio Series or 3rd-party controller

• Credential Options

  Under mount RFID reader: (support model: Pro ID Series, KR Series)
  Under mount fingerprint reader: FR1200 / FR1500S

• Flow Rate

  Facial Authentication: 15 passengers per minute
  QR Code: 30 passengers per minute
  RFID: 35 passengers per minute

• Accessibility

  Adult, children (with care), Disability (with care)

• Power Supply

  110V / 220V ±10% AC @50Hz/60Hz

• Power Rating

  20VA (Standby)
  40VA (Operation)

• Fire Signal

  Input for voltage free contact

• Noise Level

  Less than 60dB

• MTTR

  Less than 60 minutes

• MCBF

  5 million

• Weight

  Saturn-S2000: 100Kg (Net weight); 140Kg (Gross weight)
  Saturn-S2200: 60Kg (Net weight); 100Kg (Gross weight)

• Dimension (L*W*H)

  1500*180*1020mm

• Dimension with Packing (L*W*H)

  Saturn-S2000: 1580 * 340 * 1270 (mm) (2pcs)
  Saturn-S2200: 1580 * 340 * 1270 (mm)

• Operating Temperature

  -30 °C to 70 °C

• Operating Humidity

  5% to 90% RH (Non-condensing)

• Certifications

  CE, FCC

• Ingress Protection Rating

  IP54 (water & dust proof)

• Supported Software

  ZKBio CVAccess / ZKBio CVSecurity (Depends on equipped access controller)

• Safety Features

  Voltage free contact input for fire alarm fail state
  automatic swing barrier open during power off

• Security Features

  Anti-tailgating, anti-pinch

• Product Delivery

  Pre-assembled

• Application Environment

  Indoor / outdoor (if sheltered)

• Site Preparation

  Flat & level finished floor
  (base plate in options for unfinished floor)

• Security Level

  Medium

• Emergency Mode

  Support (swing barrier open automatically)

• Packing Material

  Wooden
