Paramètres

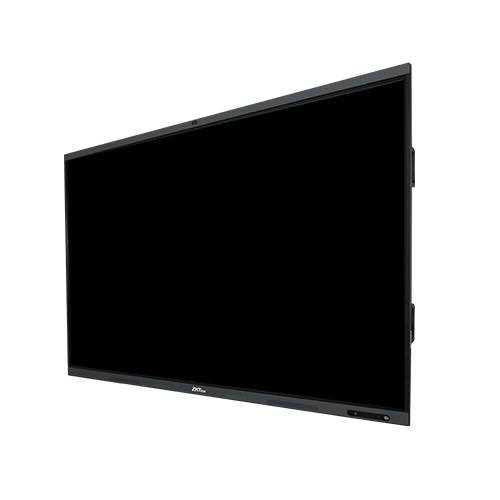

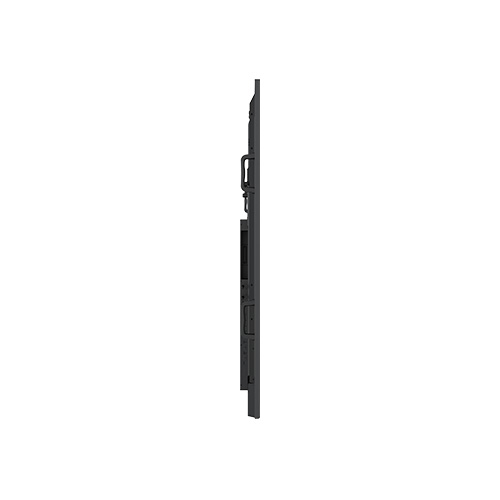

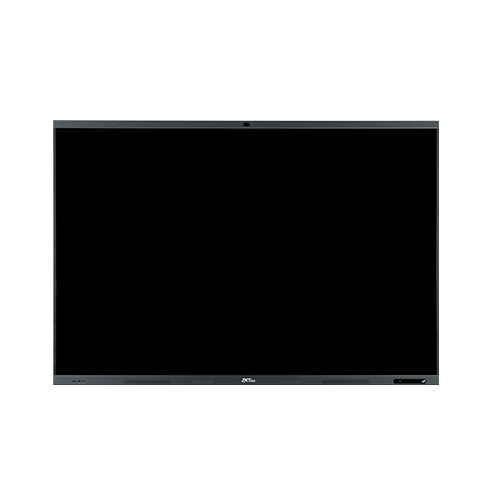

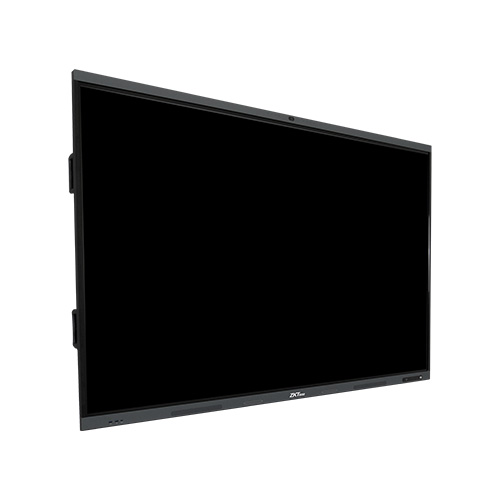

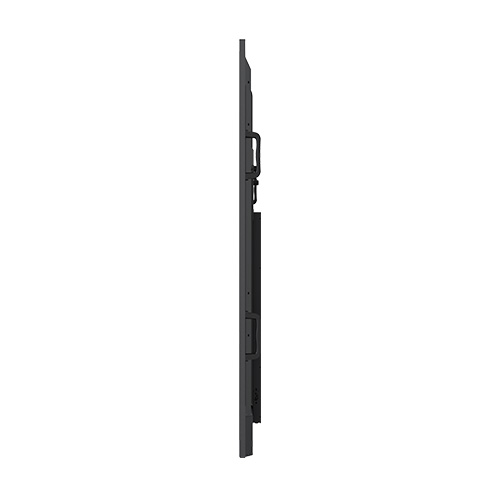

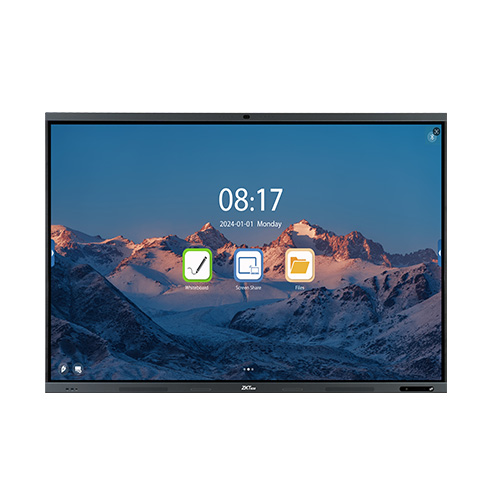

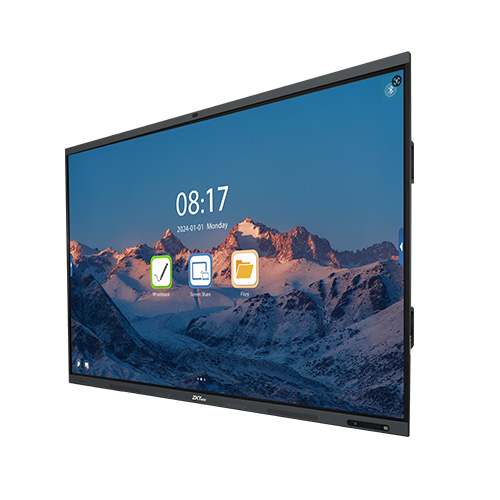

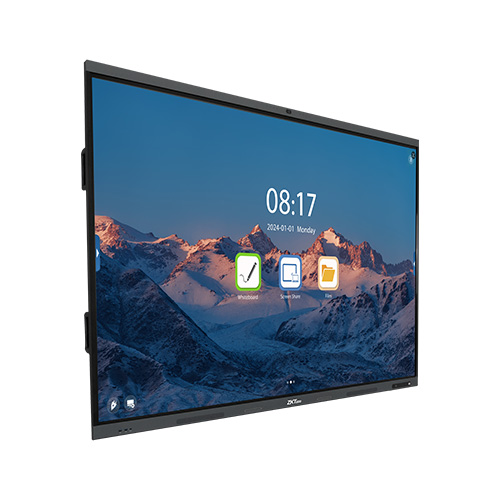

• Model

  SC02-I365A
  SC02-I375A
  SC02-I386A

• Screen Parameters

• Screen Size

  SC02-I365A: 65 inch
  SC02-I375A: 75 inch
  SC02-I386A: 86 inch

• Screen Type

  SC02-I365A: ADS
  SC02-I375A: ADS
  SC02-I386A: IPS

• Backlight

  D-LED

• Backlight Life

  50,000 hours (min.)(typ.)

• Resolution

  3840 × 2160 (pixels)

• Brightness

  450cd/m²(typ.)

• Contrast Ratio

  1200:1 (typ.)

• Response Time

  8ms (typ.)

• Refresh Frequency

  60Hz

• Aspect Ratio

  16 : 09

• View Angle

  178°(H) / 178°(V)

• Display Colors

  1.07B(8bit+FRC)

• Bonding Technology

  The gap between tempered glass and screen is close to 0

• Touch Parameters

• Touch Technology

  Advanced infrared touch technology

• Touch Points

  Up to 50

• Touch Response Time

  Single touch: ≤ 3ms
  Multiple touch: ≤3 ms

• Accuracy

  Center 90% touch area: 1mm

• Anti-Glare

  High transparent+Smooth+Anti-glare

• Glass Hardness

  9H (Pencil Hardness); 7(Mohs Hardness) Tempered Glass

• Writing Height

  ≤ 1mm

• System

• CPU

  Quad core A73+Quad core A53

• GPU

  MaliG52 MP8

• Memory (RAM)

  8GB

• Storage (ROM)

  128GB

• Operating System

  Android 14 / Windows 11 (Optional)

• Connectivity

• Front Port

  USB 3.0 * 2
  Type-C (65W) * 1

• Bottom Port

  AUDIO IN * 1
  VGA * 1
  LAN IN/OUT * 2
  RS232 * 1
  MIC IN * 1
  HDMI OUT * 1
  AUDIO OUT * 1
  SPDIF * 2

• Side Port

  Touch-USB * 2
  DP * 1
  HDMI IN (ARC) 1 2. 0 * 1
  HDMI IN (CEC) 2 2.0 * 1
  Type-C * 1
  USB 2.0 * 1
  USB 3.0 * 2
  OPS slot (for slot-in PC) * 1

• Wi-Fi

  Wi-Fi 6: IEEE 802.11 ax/ac/b/g/n (5GHz / 2.4GHz)

• Bluetooth

  BT 5.0: 2.1+EDR / 4.2 / 5.0

• NFC

  ISO / IEC 14443 A; ISO / IEC 14443 B

• Built-in peripherals

• Camera

  Pixel: 48 MP
  FOV: FOV Diagonal 114.9°
  Face Tracking: Support
  Sound Localization: Support

• Microphone

  Array Quantity: 8 microphones array
  Pickup Range: Support
  3D Noise Reduction: Support
  AEC & AGC: Support

• Speaker

  2 * 20W+1 * 20W (Subwoofer optional)

• Power

• Operating Power

  100 V ~ 240 V/AC, 50/60 Hz

• Standby power consumption

  <0.5W

• Power consumption (100% brightness)

  SC02-I365A: 178W(typ.)
  SC02-I375A: 215W(typ.)
  SC02-I386A: 278W(typ.)

• Physical

• Dimensions (W × H × D)

  SC02-I365A: 1483.9 * 86.7 * 911.6mm
  SC02-I375A: 1705 * 86.9 * 1036mm
  SC02-I386A: 1950.4 * 86.9 * 1174mm

• Package Dimensions (L × W × H)

  SC02-I365A: 1640 * 185 * 1010mm
  SC02-I375A: 1860 * 185 * 1125mm
  SC02-I386A: 2095 * 185 * 1265mm

• Net Weight (kg)

  SC02-I365A: 40.5kg
  SC02-I375A: 53.95kg
  SC02-I386A: 66.85kg

• Weight with Packaging (kg)

  SC02-I365A: 50.2kg
  SC02-I375A: 64.5kg
  SC02-I386A: 79.05kg

• Case Material

  Aluminium Alloy and Sheet Metal

• Color

  Blue grey

• Lifespan

  50000 Hours (Expected)

• Environment

• Operating Temperature

  0°C to 40°C

• Storage Temperature

  10°C to 60°C

• Operating Humidity

  20% to 80% RH (Non-condensing)

• Storage Humidity

  10% to 60% RH (Non-condensing)

• Accessories

• Cables

  Power Cable * 1, USB Cable * 1, HDMI Cable * 1

• Remote Controller

  1

• Wall mount

  1

• Stylus Pen

  2

• Eraser

  1

• Peripheral Accessories(Optional)

• Movable bracket

  YES

• OPS

  YES

• Wireless Dongle

  YES
