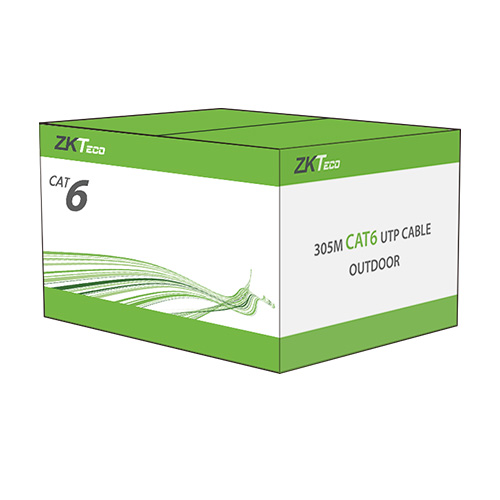

XL600-CPR-B

· 305,0 m (1000 ft)/carton UTP CAT6, alimentation par Ethernet compatible avec un seul câble

· Matériau conducteur en cuivre sans oxygène de haute pureté

· Gaine extérieure personnalisée pour bloquer l’eau ; Répondez à la certification CE, CPR ECA ou ANSI UL CM retardant de flamme

Conductor
Material

Oxygen-free copper (99.99% purity)
Diameter

1/0.56mm (0.55mm±0.01)
American Wire Gauge

23AWG
Insulation
Material

HDPE
Min. Average Thickness

0.21 mm
Diameter

1mm ± 0.05 mm
Color (4 Pairs)

Blue, white / blue; orange, white / orange; green, white / green; brown, white / brown
Separator
Material

PE
Specification

Translucent 4.5×0.4 mm
Rip Cord
Material

Polyester
Specification

500D
Sheath
Material

Customized water-blocking outer sheath
Min. Average Thickness

0.43 mm
Color

Black (optional)
Diameter

6.3 mm ± 0.5 mm
Electrical
Max. DC Resistance of a Single Conductor

9.38Ω/100 m
Min. Insulation Resistance

5000MΩ·km
Max. DC Resistance Unbalance

≤5%
Dielectric Strength

No breakdown with 1KV DC for 1 min
Transmission
Characteristic Impedance (1-250MHz)

100 ± 15Ω
Mechanical
Tensile Strength

Sheath≥10 MPa, insulation≥16 MPa
Elongation at Break

Sheath≥125%, insulation≥300%
Installation Bending Radius

>8 times of outer cable diameter
Conductor Elongation at Break

≥10%
Environmental
Shrinkage of Insulation

≤5%
Color Migration Resistance of Insulation

No migration
Sheath Tensile Strength and Elongation at Break after Aging

≥8 MPa, ≥100%
Low Temperature Bending Test

No cracking after the test
Heat Shock Test

No cracking after the test
Operation Temperature

–20°C to +60°C (–4°F to 140°F)
Installation Temperature

0°C to +50°C (32°F to 122°F)
Storage Temperature and Humidity

–10°C to +40°C (14°F to 104°F), <60% (RH)
Certifications

CPR Eca
