Paramètres

• Basic

• Model number

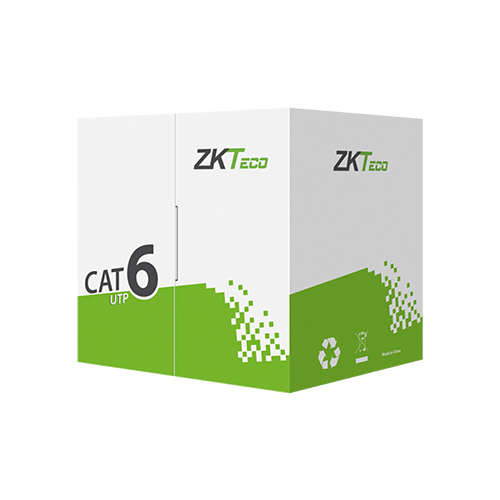

  XL600-C-L56

• Standards

  YD/T1019-2013; ISO/IEC 11801; ANSI/TIA/ETA 568-B

• Wires Specs

  4 * 2 * 0.56 (mm)

• Operation Temperature

  -20°C to +60°C

• Material

• Conductor

• Material

  Copper Clad Aluminum

• Diameter

  1/0.56±0.01mm

• Wire Gauge

  23AWG

• Insulation

• Material

  HDPE

• Diameter

  1.0mm ± 0.05mm

• Avg.Thickness(mm)

  0.19

• Min.Thickness(mm)

  0.17

• Color

  Blue, white/blue; orange, white / orange; green, white / green; brown, white/Brown

• Separator

• Material

  PE

• Specification

  Translucent 4.3mm* 0.35mm

• Filler

• Material

  Nylon

• Jacket

• Material

  PVC

• OD

  6.1mm ± 0.30mm

• Avg.Thickness

  0.5mm

• Min.Thickness

  0.4mm

• Electrical

• Conductor Resistance

  ≤9.38Ω/100M at 20°C

• Insulation Resistance

  Min.5000mega ohms-km at 20°C

• Dielectric Strength

  No Breakdown with 1000V DC for 1min

• Delay Difference

  ≤ 45ns

• Frequency

  250Mhz

• Impedance

  100Ω±15

• Mechanical

• Insulation Elongation at Break

  ≥ 300%

• Insulation Tensile Strength

  ≥ 16 Mpa

• Jacket Elongation at Break

  ≥ 150%

• Jacket Tensile Strength

  ≥ 13.5 Mpa

• Package

• Packing

  Pull box

• Length

  305m

• Rip Cord

  Yes

• Drain wire

  N/A

• Carton (L*W*H)

  395 * 395 * 235 (mm)

• Ordering Information

• Product Type

  CAT 6 Cable

• Part Number

  XL600

• Description

  CAT 6; OFC; OD6.1mm±0.30mm
