Paramètres

• Basic

• Model number

  XL600-C-L

• Wires Specs

  4 × 2 × 0.5 (mm)

• Operation Temperature

  -20°C to +60°C

• Material

• Conductor

• Material

  Copper Clad Aluminum

• Diameter

  0.5 mm ± 0.015 mm

• Wire Gauge

  24 AWG

• Insulation

• Material

  HDPE

• OD

  0.9 mm ± 0.05 mm

• Avg.Thickness

  0.19 mm

• Min.Thickness

  0.17 mm

• Color

  Blue, white / blue; orange, white / orange; green, white / green; brown, white / brown

• Separator

• Material

  PE

• Specification

  Translucent 4.3 mm × 0.35 mm

• Filler

• Material

  Nylon

• Jacket

• Material

  PVC

• OD

  5.6 mm ± 0.15 mm

• Avg.Thickness(mm)

  0.5 mm

• Min.Thickness(mm)

  0.4 mm

• Electrical

• Conductor Resistance

  ≤ 9.38 Ω / 100 M at 20°C

• Insulation Resistance

  Min. 5000mega ohms-km at 20°C

• Dielectric Strength

  No Breakdown with 1000 VDC for 1 min

• Delay Difference

  ≤ 45 ns

• Frequency

  Frequency

• Impedance

  100 Ω ±20 Ω

• Mechanical

• Insulation Elongation at Break

  ≥ 300%

• Insulation Tensile Strength

  ≥ 16 Mpa

• Jacket Elongation at Break

  ≥ 150%

• Jacket Tensile Strength

  ≥13.5 Mpa

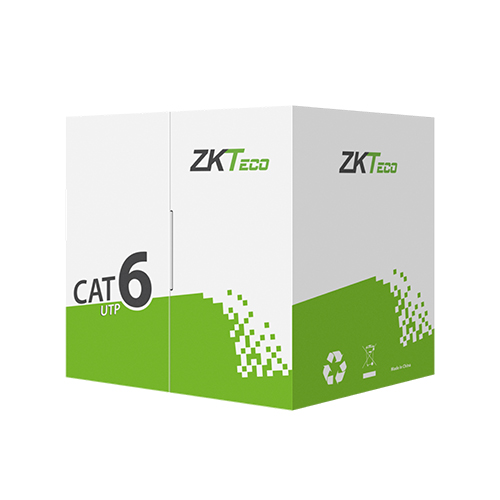

• Package

• Packing

  Pull box

• Length

  305 M

• Rip Cord

  Yes

• Drain wire

  N/A

• Carton (L*W*H)

  395 × 395 × 235 (mm)

• Ordering Information

• Product Type

  CAT 6 Cable

• Part Number

  XL600-C-L

• Description

  CAT 6; 4 × 2 × 0.5 mm, OD 5.6 mm ± 0.15 mm
