Paramètres

• Model

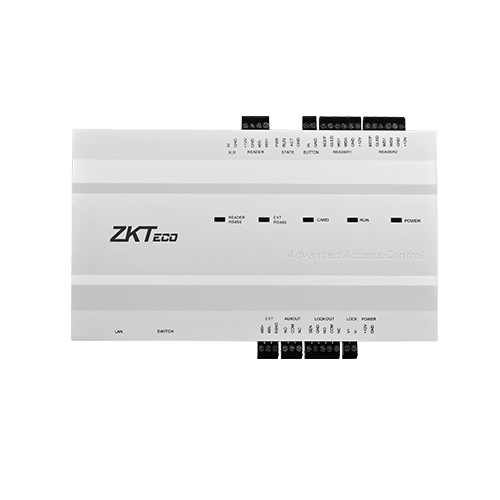

  InBio160 Pro Plus

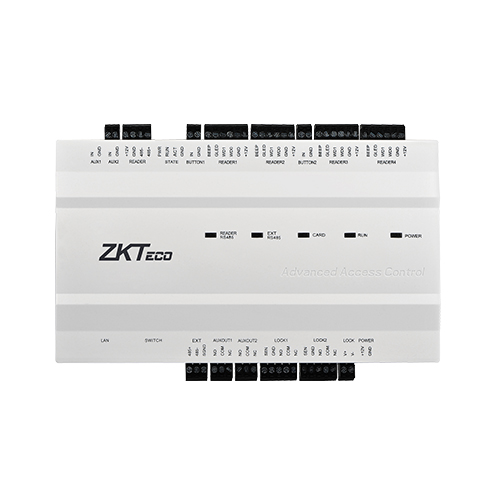

  InBio260 Pro Plus

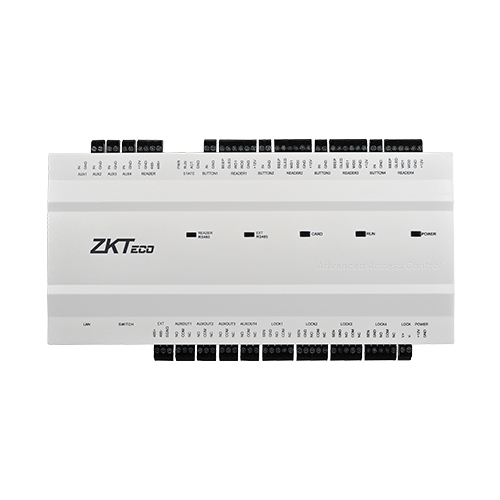

  InBio460 Pro Plus

• Operation System

  Linux OS

• Hardware

  CPU: Single Core@1.0GHz
  RAM: 128MB; ROM:256MB;

• Authentication Method

  Card / Password / Fingerprint / Face / QR Code

• Access Point Capacity

  InBio160 Pro Plus:1 Access Point
  InBio260 Pro Plus: 2 Access Points
  InBio460 Pro Plus: 4 Access Points

• Reader Capacity

  nBio160 Pro Plus: 2 * RS-485 Readers (ZKTecoRS-485 / OSDP), 2 * 26 / 34 / 66 bit Wiegand Readers
  InBio260 Pro Plus: 4 * RS-485 Readers (ZKTecoRS-485 / OSDP), 4 * 26 / 34 / 66-bit Wiegand Readers
  InBio460 Pro Plus: 8 * RS-485 Readers (ZKTecoRS-485 / OSDP), 4 * 26 / 34 / 66-bit Wiegand Readers

• IO Expansion Board Capacity

  8pcs EX0808 (RS-485 connection)

• User Capacity

  100,000

• Card Capacity

  100,000 (1:N) (Standard)

• Fingerprint Template Capacity

  20,000 (1:N) (Standard)

• Face Template Capacity

  3,000 (1:N) (Standard)

• QR Code Capacity

  100,000 (Static QR Code / Dynamic QR Code)

• Transaction Capacity

  500,000 (Standard)

• Number of Inputs

  InBio160 Pro Plus: 1 * Exit Button, 1 * Door Status, 1 * AUX Inputs or 64 (with 8pcs of EX0808 IO expansion board)
  InBio260 Pro Plus: 2 * Exit Button, 2 * Door Status, 2 * AUX Inputs or 64 (with 8pcs of EX0808 IO expansion board)
  InBio460 Pro Plus: 4 * Exit Button, 4 * Door Status, 4 * AUX Inputs or 64 (with 8pcs of EX0808 IO expansion board)

• Number of Outputs

  InBio160 Pro Plus: 1 * Form C Relay for Lock, 1* Form C Relay for Aux Output or 64 (with 8pcs of EX0808 IO expansion board)
  InBio260 Pro Plus: 2 * Form C Relay for Lock, 2 * Form C Relay for Aux Output or 64 (with 8pcs of EX0808 IO expansion board)
  InBio460 Pro Plus: 4 * Form C Relay for Lock, 4 * Form C Relay for Aux Output or 64 (with 8pcs of EX0808 IO expansion board)

• Max. Card Length

  Supports up to 66 bits Card Length

• QR Code

  PDF417, Data Matrix, MicroPDF417, Aztec scanning in third-party development projects.
  Dynamic QR codes on the ZKBio CVSecurity mobile application

• Communication

  InBio160 Pro Plus: TCP/IP * 1; RS-485: ZKTeco RS-485 / OSDP (Optional) * 1; Wiegand (Input) * 2; USB: Type A (USB Drive Only) * 1; Aux Inputs * 1, Aux Outputs * 1, Electric Lock * 1, Door Sensor * 1, Exit Button * 1, Alarm * 1
  InBio260 Pro Plus: TCP/IP * 1; RS-485: ZKTeco RS-485 / OSDP (Optional) * 1; Wiegand (Input) * 4; USB: Type A (USB Drive Only) * 1; Aux Inputs * 2, Aux Outputs * 2, Electric Lock * 2, Door Sensor * 2, Exit Button * 2, Alarm * 2
  InBio460 Pro Plus: TCP/IP * 1; RS-485: ZKTeco RS-485 / OSDP (Optional) * 1; Wiegand (Input) * 4; USB: Type A (USB Drive Only) * 1; Aux Inputs * 4, Aux Outputs * 4, Electric Lock * 4, Door Sensor * 4, Exit Button * 4, Alarm * 4

• Standard Functions

  Webserver, Upto 14-digit User ID, Access Levels, Access Groups, Holidays, Anti-passback,Anti-tailgating, Linkage, Global Linkage, Multiple Verification Methods

• Access Control Interface

  Wiegand (Card Reader), RS-485 (RS-485 Card Reader / Fingerprint Reader / Facial Recognition Reader / QR code Reader)

• Power Supply

  9.6V- 14.4V DC

• Power Supply

  9.6V- 14.4V DC

• Operating Temperature

  0℃ to 45℃

• Operating Humidity

  20% to 80% RH (Non-condensing)

• Dimension(L*W*H)

  InBio160 Pro Plus: 185.12 mm*106 mm*36.07 mm
  InBio260 Pro Plus: 185.12 mm*106 mm*36.07 mm
  InBio460 Pro Plus: 226 mm*106 mm*36.07mm

• Gross Weight

  InBio160 Pro Plus: 1.004 Kg
  InBio260 Pro Plus: 1.037 Kg
  InBio460 Pro Plus: 1.098 Kg

• Net Weight

  InBio160 Pro Plus: 0.390 Kg
  InBio260 Pro Plus: 0.422 Kg
  InBio460 Pro Plus: 0.494 Kg

• Supported Software

  ZKBio CVSecurity

• Installation

  Supported DIN Rail mount / Wall-mount / Metal Enclosure (Optional)

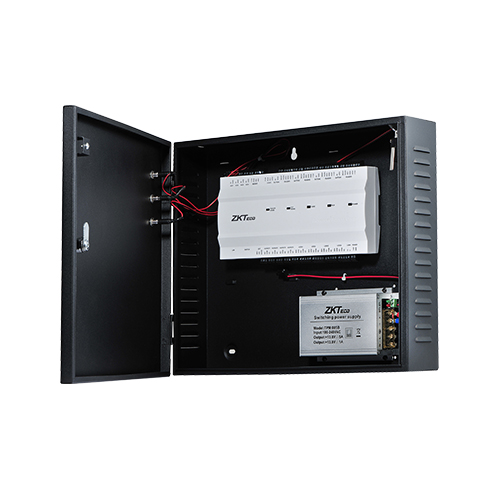

• Enclosure (Optional)

  InBio160 Pro Plus / InBio260 Pro Plus: Size: 350 mm*90 mm*300 mm (L*W*H); Material: SPCC steel; Power Supply Unit: input 110V~240V AC,output 12V 2A;1A DC; Backup Battery: Space reserved; [Backup Battery Recommended size: (L*W*H):151 x 94 x 65 mm)]; Gross Weight: 3.57 Kg
  InBio460 Pro Plus: Size: 350 mm*90 mm*300 mm (L*W*H); Material: SPCC steel; Power Supply Unit: input 110V~240V AC,output 12V 4A+1A DC; Backup Battery: Space reserved [Backup Battery Recommended ; Size:151 x 94 x 65 mm(L*W*H)]; Gross Weight: 3.77 Kg

• Certifications

  ISO14001, ISO9001, CE, FCC, RoHS

• Factory ID

  InBio160 Pro Plus: AC02-CB11H-U10
  InBio260 Pro Plus: AC02-CB12H-U10
  InBio460 Pro Plus: AC02-CB14H-U10
