Paramètres

• Model

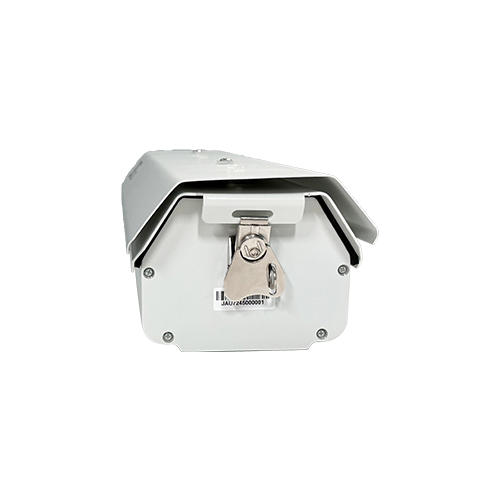

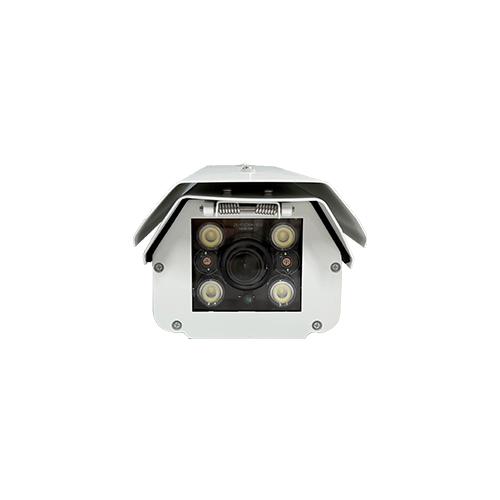

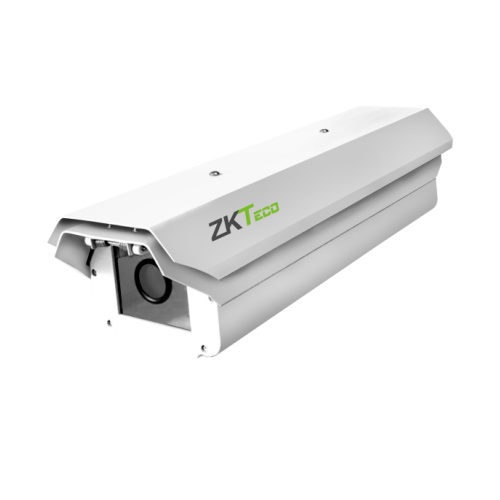

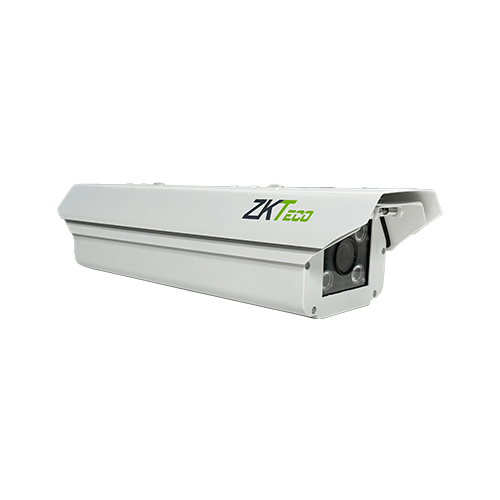

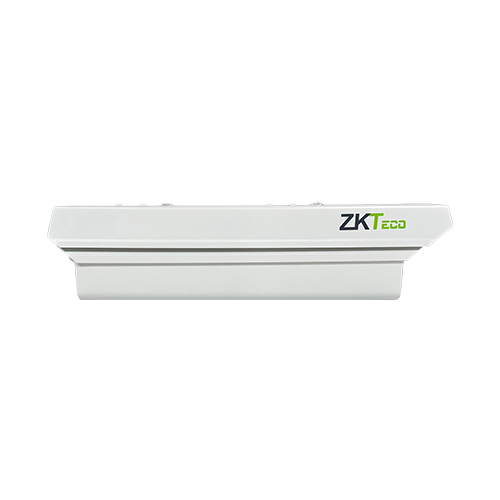

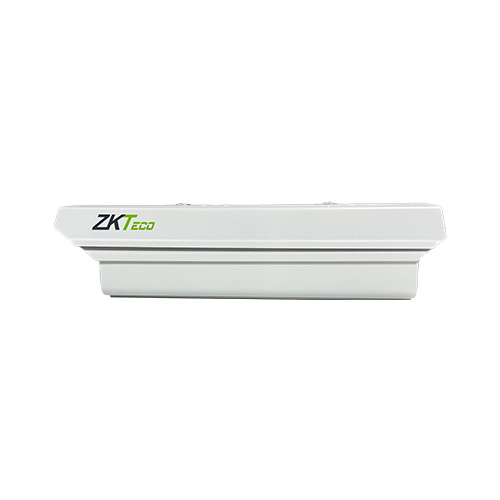

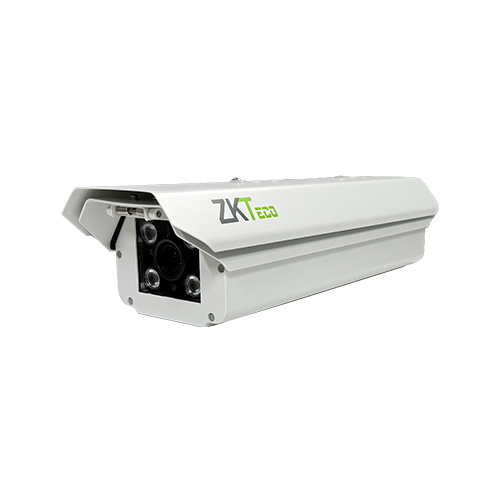

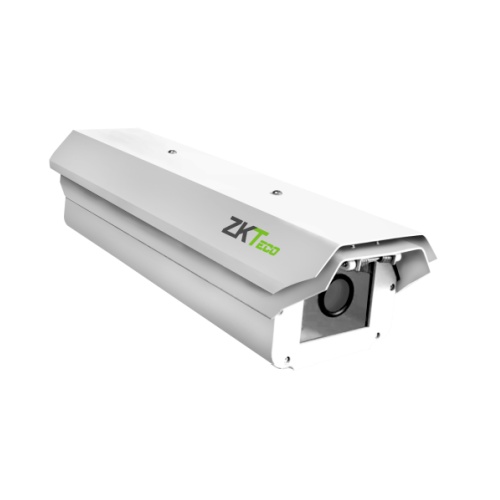

  E-LPRC500

• Algorithm

• License Plate Capture Rate

  95%

• Recognize Rate

  ≥99.9% (Typical Scene + Typical License Plate)

• Car Speeds

  0~25KM/h

• Recognize Speed

  Less than 100ms

• Plate Type

  Over 130 country and region

• Target Features

  Number \ Color \ Type \ Size

• License Plate Anticounterfeiting

  Abnormal license plate (mobile phone photo and printing) alarm is supported

• Unlicensed Vehicles

  Support unlicensed vehicles

• License Plate Allow List

  Support accurate and intelligent fuzzy matching of allow list license

• Image

• Basic Configuration

  Built-in intelligent ISP algorithm, intelligent optimization and dimming, intelligent adaptation to complex scenes

• Video / Audio

• Video Compression Standards

  H.264/ H.265 / MJPEG

• Resolutions

  640*360 / 704*576 / 1280*720 / 1920*1080

• Video Bitrate

  512Kbps~5000Kbps

• Frame Rate

  1~25FPS

• Audio Coding

  G.711/AAC

• Protocols

• Protocols

  SDK / ONVIF / HTTP / RTSP / TCP / IP / UDP / RS485 / IO/ NTP / VPN / FTP / UPNP

• Image

• Image Sensor

  5MP CIS

• Low light

  0.1LUX color (with fill light)

• Resolution

  2880(H) x 1620(V)

• Electronic shutter

  0-1ms or customized

• Lens

  6mm Fixed Lens
  Optional 2.8~12mm / 7~22mm / 5~50mm Lens

• Lens interface

  M12

• Image Configuration

  Brightness, contrast, saturation, image flip, exposure time, etc.

• Noise Reduction

  Support 2D / 3D noise reduction

• WDR

  Support

• Ports / Button

• Network

  1 * 10 / 1000Mbps Adaptive RJ45 port

• IO Input

  4 channels

• RS485

  2 channels

• TF-card

  1 TF card slot, supports up to 256GB

• Bluetooth

  Support

• LCD Driver

  Optional

• Voice Intercom

  Optional

• Reset

  1* RESET Button

• Status Light

  Support

• Storage

• Storage

  32G

• Reliability

• Operating Temperature

  -30°C ~70°C

• Power Supply

  Integrated: 12V DC 2A for basic configurations (without speakers, screens and other high power consuming components)
  Module: 12V DC 5A for extended configurations (with speakers, screens and other high-power components)

• Power Consumption

  Integrated: Power consumption ≤ 8W (basic set, including fill light, excluding speakers, screen and other high power consumption components)
  Module: Power consumption ≤ 55W (extended set with speakers, screen and other high power consumption components)

• Protection Standard

  Integrated: IP65
  Module: /

• Dimensions

• Dimensions (L*W*H)

  Integrated: 440mm * 144mm * 103mm
  Module: 109mm * 149mm * 72mm
