Paramètres

• Model

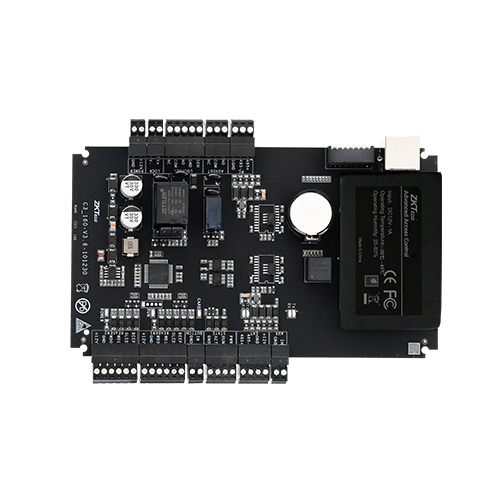

  C3-100 Plus

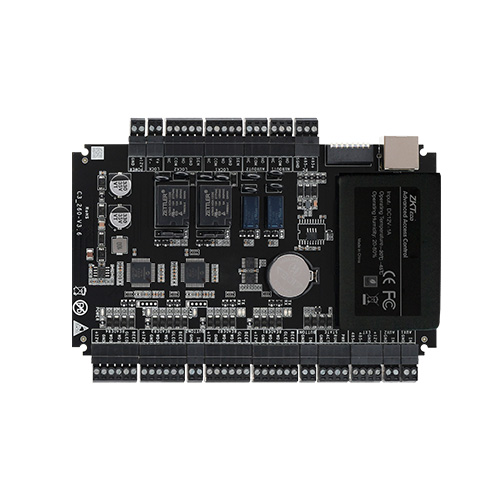

  C3-200 Plus

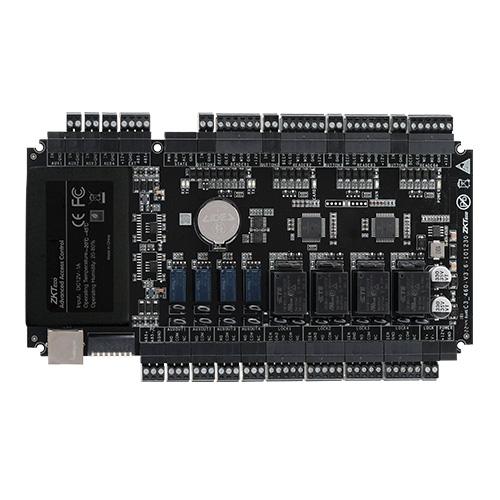

  C3-400 Plus

• Operation System

  Linux OS

• Hardware

  CPU: Single Core @ 1.0GHz
  RAM: 128MB; ROM: 256MB

• Authentication Method

  Card / Password / QR Code

• Access Point Capacity

  C3-100 Plus: 1 Access Point
  C3-200 Plus: 2 Access Points
  C3-400 Plus: 4 Access Points

• Reader Capacity

  C3-100 Plus: 2 * RS-485 Readers (ZKTeco RS-485 / OSDP), 2* 26 / 34 / 66 bit Wiegand Readers
  C3-200 Plus: 4 * RS-485 Readers (ZKTeco RS-485 / OSDP), 4*26 / 34 / 66-bit Wiegand Readers
  C3-400 Plus: 8 * RS-485 Readers (ZKTeco RS-485 / OSDP), 4*26 / 34 / 66-bit Wiegand Readers

• IO Expansion Board Capacity

  8pcs EX0808 (RS-485 connection)

• User Capacity

  100,000

• Card Capacity

  100,000 (1:N) (Standard)

• QR Code Capacity

  100,000 (Static QR Code / Dynamic QR Code)

• Transaction Capacity

  500,000 (Standard)

• Number of Inputs

  C3-100 Plus: 1 * Exit Button, 1 * DoorStatus, 1 * AUX Inputs or 64 (with 8pcs of EX0808 IO expansion board)
  C3-200 Plus: 2 * Exit Button, 2 * DoorStatus, 2 * AUX Inputs or 64 (with 8pcs of EX0808 IO expansion board)
  C3-400 Plus: 4 * Exit Button, 4 * DoorStatus, 4 * AUX Inputs or 64 (with 8pcs of EX0808 IO expansion board)

• Number of Outputs

  C3-100 Plus: 1 * Form C Relay forLock, 1 * Form C Relay forAux Output or 64 (with 8pcs of EX0808 IO expansion board)
  C3-200 Plus: 2 * Form C Relay forLock, 2 * Form C Relay forAux Output or 64 (with 8pcs of EX0808 IO expansion board)
  C3-400 Plus: 4 * Form C Relay orLock, 4 * Form C Relay for Aux Output or 64 (with 8pcs of EX0808 IO expansion board)

• Max. Card Length

  Supports up to 66 bits Card Length

• QR Code

  QR code, PDF417, Data Matrix, MicroPDF417, Aztec scanning in third-party development projects.Dynamic QR codes on the ZKBio CVAccess mobile application.

• Communication

  C3-100 Plus: TCP / IP * 1; RS-485: ZKTeco RS-485 / OSDP * 1; Wiegand (Input) * 2; USB: Type A (USB Drive Only) * 1; Aux Inputs * 1; Aux Outputs * 1; Electric Lock * 1; Door Sensor * 1; Exit Button * 1; Alarm * 1
  C3-200 Plus: TCP / IP * 1; RS-485: ZKTeco RS-485 / OSDP * 1; Wiegand (Input) * 4; USB: Type A (USB Drive Only) * 1; Aux Inputs * 2; Aux Outputs * 2; Electric Lock * 2; Door Sensor * 2; Exit Button * 2; Alarm * 2
  C3-400 Plus: TCP / IP * 1; RS-485: ZKTeco RS-485 / OSDP *1; Wiegand (Input) * 4; USB: Type A (USB Drive Only) * 1; Aux Inputs * 4; Aux Outputs * 4; Electric Lock * 4, Door Sensor * 4; Exit Button * 4; Alarm * 4

• Standard Functions

  Webserver, Upto 14-digit User ID, Access Levels, Access Groups, Holidays, Anti-passback, Anti-tailgating, Linkage, Global Linkage, Multiple Verification Methods

• Access Control Interface

  Wiegand (Card Reader)
  RS-485 ( RS-485 Card Reader / QR Code Reader)

• Power Supply

  9.6V - 14.4V DC

• Operating Temperature

  0℃ to 45℃

• Operating Humidity

  20% to 80% RH (Non-condensing)

• Dimensions (mm)

  C3-100 Plus: 175 mm*99 mm*19.3 mm (L*W*H)
  C3-200 Plus: 175 mm*99 mm*19.3 mm (L*W*H)
  C3-400 Plus: 215.88 mm*99.14 mm*19.3 mm(L*W*H)

• Gross Weight

  C3-100 Plus: 0.263 Kg
  C3-200 Plus: 0.296 Kg
  C3-400 Plus: 0.357 Kg

• Net Weight

  C3-100 Plus: 0.158 Kg
  C3-200 Plus: 0.190 Kg
  C3-400 Plus: 0.252 Kg

• Supported Software

  ZKBio CVAccess

• Installation

  Supported Wall-mount with Metal Enclosure (Optional)

• Enclosure (Optional)

  C3-100 Plus / C3-200 Plus: Size: 350 mm*90 mm*300 mm (L*W*H); Material: SPCC steel; Power Supply Unit: input 110V~240V AC, output 12V 4A+1A DC; Backup Battery: Space reserved [Recommended Backup Battery size: 151 x 94 x 65 mm (L*W*H)] ; Gross Weight: 3.35Kg
  C3-400 Plus: Size: 350 mm*90 mm*300 mm (L*W*H); Material: SPCC steel; Power Supply Unit: input 110V~240V AC, output 12V 4A+1A DC; Backup Battery: Space reserved [Recommended Backup Battery size: 151 x 94 x 65 mm (L*W*H)]; Gross Weight: 3.56Kg

• Certifications

  ISO14001, ISO9001, CE, FCC, RoHS

• Factory ID

  C3-100 Plus: AC02-C11H-U10
  C3-200 Plus: AC02-C12H-U10
  C3-400 Plus: AC02-C14H-U10
